Renesas R5F513T3AGFJ RX13T микроконтроллер 32bit 64KB FLASH 32LQFP

Renesas R5F513T3AGFJ RX13T микроконтроллер 32bit 64KB FLASH 32LQFP

Source:本站Time:2023-10-17Views:

(Supplied, recycled) Renesas R5F513T3AGFJ RX13T RX Microcontroller 32bit 64KB FLASH 32LQFP.Product Description:The RX13T 32-bit microcontroller (MCU) is optimized for single-motor control applications. The RX13T MCU is equipped with the RX series RXv1…

(Supplied, recycled) Renesas R5F513T3AGFJ RX13T RX Microcontroller 32bit 64KB FLASH 32LQFP.


Product Description:

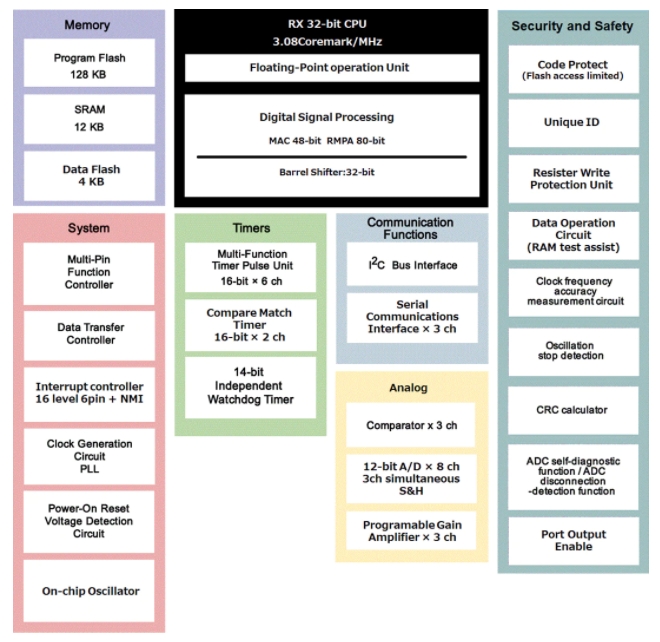

The RX13T 32-bit microcontroller (MCU) is optimized for single-motor control applications. The RX13T MCU is equipped with the RX series RXv1 core (operating at 32MHz), floating-point unit (FPU), inverter control timer and 12-bit analog-to-digital converter (ADC) for efficient inverter control of brushless DC motors in one device. They are highly compatible with existing RX devices, making it easy to convert hardware and software from previous designs. The RX13T MCU has integrated features such as a programmable gain amplifier (PGA), comparator, data flash, and high-speed on-chip oscillator (HOCO). These on-chip features help reduce the board area and BOM number used in the design.


R5F513T3AGFJ Specifications:

Core processor: RX

Kernel specification: 32-bit single-core

Speed: 32MHz

Connection capability: I²C, LINbus, SCI, SPI

Peripheral: DMA, LVD, POR, PWM, WDT

Number of I/ OS: 22

Program storage capacity: 64KB (64K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 12K x 8

Voltage - power supply (Vcc/Vdd) : 2.7V ~ 5.5V

Data converter: A/D 5x12b; D/A 1x8b

Oscillator type: Internal

Operating temperature: -40°C ~ 105°C (TA)

Mounting type: Surface mount type

Package/shell: 32-LQFP

Supplier Package: 32-LQFP (7x7)

Basic product number: R5F513


Applications:

• General industrial and consumer equipment

• Single motor control applications


If interested, please contact Mr. Chen:

Email: sales@hkmjd.com

Company homepage: www.hkmjd.com
