Supply, Recovery (ADI) Precision ADA4510-2ARZ 40V operational amplifier 8SOIC with DigiTrim technology.

Overview

The ADA4510-2ARZ is a dual-channel, 40V, high-precision, low input bias current, low offset voltage, low offset voltage drift, low noise, rail-to-rail input and output operational amplifier that can be used at any point in the signal chain, including detection, conditioning, and output drive. With ADI's proprietary DigiTrim™ technology, the ADA4510-2 delivers excellent low offset drift (typical: ±0.07 μV/°C, Max: ±0.5 μV/°C) and low offset voltage (typical: ±5 μV, Max: ±20 μV), which simplifies the temperature calibration process in precision designs.

The ADA4510-2 provides excellent DC accuracy and AC performance, making it a good choice for a variety of signal chain applications. By integrating a reliable, multiplexe-compatible architecture, the ADA4510-2 effectively addresses common system distortion and setup issues and delivers the outstanding accuracy required in multiplex, multichannel precision signal chains.

Features

Low offset voltage drift: ± 0.07μV /°C (typical)

Low offset voltage: ± 5μV (typical), ± 20μV (Max)

Low voltage noise: 1 μV p-p (0.1 Hz to 10 Hz, typical)

Low voltage noise density: 5 nV/√Hz (typical value, f = 1 kHz)

High common-mode rejection: 140 dB (typical)

Low input bias current: ±10 pA (Max)

Wide gain bandwidth product: 10.4 MHz (typical value)

High swing rate: 19 V/μs (typical)

Low THD: -134 dB (f = 1 kHz)

Low static current: 1.45 mA per amplifier (typical)

Wide supply voltage range: 6 V to 40 V, ±3 V to ±20 V

Integrated EMI filter

The multiplexer is compatible with inputs

Rail-to-rail high impedance input: check and common mode

Rapid setup time

Track-to-track output

inverse-free

Large capacitive load driving capacity: 1 nF

Wide rated temperature range: −40°C to +125°C

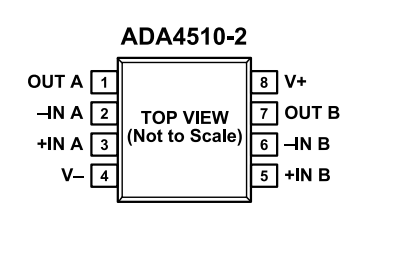

Standard 8-pin compact package (SOIC_N)

Application

• Electronic test and measurement

• Data acquisition system

• Automatic test equipment

• Medical instruments

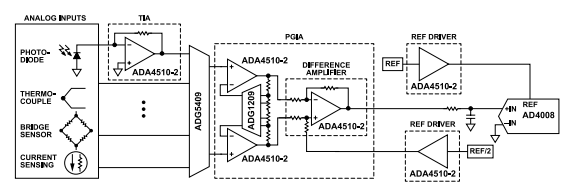

• Multiplexed input signal chain

• Precision current measurement

• Photodiode amplifier
