(Recovered, supplied) High-density, 3V to 36V Input TLVM13660RDLR (TI) 6A synchronous step-down DC/DC power module.

intro

The TLVM13660RDLR is a highly integrated 36V, 6A DC/DC solution that integrates multiple power MOSFETs, a shielded inductor, and multiple passive devices in an enhanced HotRod™ QFN package. The module's VIN and VOUT pins are located at the corners of the package to optimize the placement of input and output capacitors. Four large cooling pads below the module allow for simple layout and easy handling during manufacturing.

The TLVM13660 has an output voltage of 1V to 6V and is designed to quickly and easily achieve low EMI designs for small size PCBS. The overall solution requires only four external components and eliminates the need for magnetic and compensation component selection in the design process.

The TLVM13660 module has a simple and small size design for space-constrained applications.

Features

• Multi-function synchronous buck DC/DC power module

- Integrated MOSFETs, inductors, and controllers

- Wide input voltage range from 3 V to 36 V

- Adjustable output voltage range from 1V to 6V with 1% set point accuracy over the entire temperature range

- 5.0mm x 5.5mm x 4mm super molded plastic package

- Has a junction temperature range of -40 °C to 125°C

- Frequency can be adjusted from 200 kHz to 2.2 MHz

- Negative output voltage application function

• Ultra-high efficiency across the entire load range

- 95%+ peak efficiency

- Has external bias options for increased efficiency

- Static current at shutdown is 0.6 µA (typical)

- The typical pressure drop under 6A load is 0.8V

• Ultra-low conducting and radiating EMI signals

A low noise package with dual input paths and integrated capacitors reduces switching ringing

- The resistor can adjust the voltage swing rate of the switch node

- Constant frequency FPWM operation mode

- Meet CISPR 11 and 32 Class B launch requirements

• Suitable for scalable power supplies

- Compatible with TLVM13640 (36V, 4A) pins

• Inherent protection for robust design

- Precision open enable input and drain PGOOD indicators (for timing, control and VIN UVLO)

- Overcurrent and thermal shutdown protection

Create custom designs with the TLVM13660 and WEBENCH® Power Designer

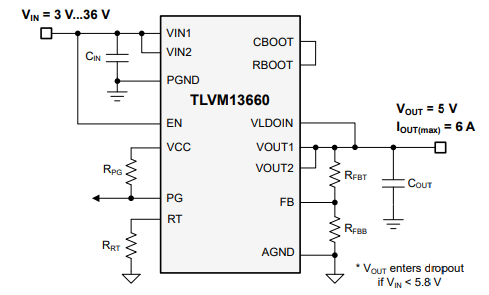

Typical application

• Test and measurement as well as aerospace and defense

• Factory automation and control

• Buck and reverse buck/boost power supplies
