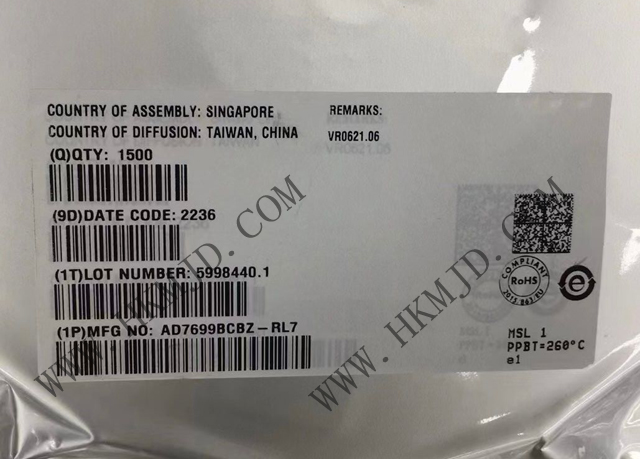

Shenzhen Mingjiada Electronics Co., Ltd. new original supply ADI analogue-to-digital converter AD7699BCBZ 16-bit, 8-channel, 500 kSPS PulSAR® ADC

Product Description

The AD7699BCBZ is an 8-channel, 16-bit, charge redistribution successive approximation analogue-to-digital converter (ADC) with a single power supply.

The AD7699BCBZ has the elements required for a multichannel, low-power, data-acquisition system, including: a distortion-free, true 16-bit SAR ADC; a 4-channel, low-crosstalk multiplexer for configuring the inputs as single-ended (with or without reference ground), differential, or bipolar inputs; an internal, low-drift reference source (selectable from 2.5 V or 4.096 V), and a buffer; temperature sensor; selectable 1-pole filter; and sequencer for multi-channel continuous sampling.

The AD7699BCBZ is available in a small 20-pin LFCSP package and operates over the -40°C to +85°C temperature range.

Applications

Battery-powered equipment

Medical instruments

Mobile communications

Personal digital assistants

Data Acquisition

Seismic Data Acquisition Systems

Instrumentation

Process Control

AD7699BCBZ Product Attributes:

Number of bits: 16

Sampling rate (per second): 500k

Number of inputs: 8

Input Type: Single-Ended

Data Interfaces: DSP, MICROWIRE™, QSPI™, and SPI™

Configuration: MUX-S/H-ADC

Ratio - S/H:ADC: 1:1

Number of A/D converters: 1

Architecture: SAR

Reference Type: External, Internal

Voltage - Supply, Analogue: 4.5V ~ 5.5V

Voltage - Powered, Digital: 4.5V ~ 5.5V

Features: Temperature Sensor

Operating Temperature: -40°C ~ 85°C

Package/Housing: 20-UFBGA, WLCSP

Supplier Device Package: 20-WLCSP (2.39x2.39)

Mounting Type: Surface Mount
