(Recall, supply) LTM4664AIY 30V to 58V input, dual-channel 30A μModule regulator with digital power system management.

Overview:

The LTM4664A is a complete, non-isolated 48V input high-efficiency step-down μModule® regulator with dual-channel 30A outputs. The device has a built-in switching controller, power MOSFETs, inductors, and support components. Only external capacitors are needed to complete the design. The LTM4664A operates in an input voltage range of 30V to 58V and supports output voltages from 0.5V to 1.5V with power up to 75W. Intermediate output of 25% • VIN is also available.

The LTM4664AIY dual-channel 30A regulator uses a digitally programmable analog control loop, a precision data acquisition circuit, and an EEPROM with ECC. The LTM4664A's two-wire serial interface enables margin adjustment, fine tuning, and ramp up and ramp down of 30A outputs with programmable swing rates and timing monitoring delay times. True input current detection, output current and voltage, input and output power, temperature, uptime, and peak values are all readable for dual 30A power System management (PSM) channels.

peculiarity

Full 48V input to low voltage dual 30A power supply, expandable to 300A, non-isolated

Dual analog loop with digital interface for compensation, control and monitoring

Input voltage range: 30V to 58V

Output voltage range: 0.5V to 1.2V, 30A/ channel

Output current read-back accuracy of ± 3% (-20 ° to 125°C)

The efficiency of 48V to 1V is 87% at 60A and 90% at 40A

The output voltage accuracy over the entire temperature range is ±0.5%

400kHz PMBus compatible with I2C serial interface

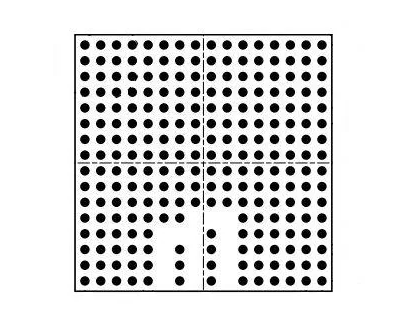

16mm x 16mm x 7.72mm BGA package

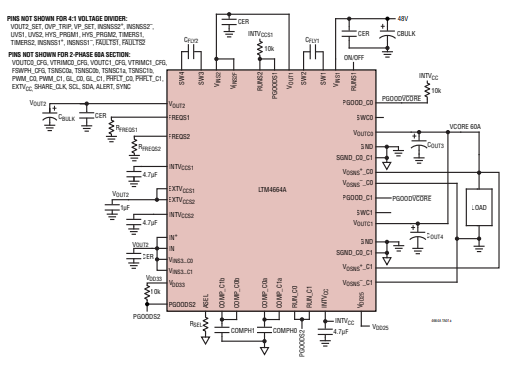

Typical application

48V system

Computer and network equipment

Electronic test equipment

Storage system
