The NXP's 800MHz MIMXRT1171AVM8A microcontroller features a 32-bit ARM ® Cortex ® -M7 core

The NXP's 800MHz MIMXRT1171AVM8A microcontroller features a 32-bit ARM ® Cortex ® -M7 core

Source:本站Time:2023-09-20Views:

(Recalled, supplied) NXP has 800MHz frequency, MIMXRT1171AVM8A microcontroller with 32-bit ARM Cortex-M7 core, 289LFBGA.OverviewThe MIMXRT1171AVM8A microcontroller is based on the 32-bit ARM Cortex-M7 core and operates at frequencies up to 800MHz.The …

(Recalled, supplied) NXP has 800MHz frequency, MIMXRT1171AVM8A microcontroller with 32-bit ARM® Cortex-M7 core, 289LFBGA.

Overview

The MIMXRT1171AVM8A microcontroller is based on the 32-bit ARM® Cortex-M7 core and operates at frequencies up to 800MHz.

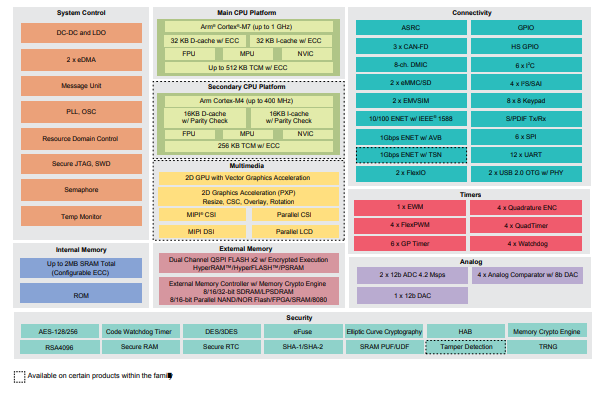

The i.MX RT1170 crossover MCU is part of the EdgeVerse™ edge computing platform and has set a 1GHz speed record. This breakthrough series combines superior computing power, multiple media capabilities, and real-time capabilities for ease of use. The dual-core i.MX RT1170 features Arm® Cortex-M7 cores up to 1GHz and Arm Cortex-M4 clocking up to 400MHz, while providing advanced security. The i.MX RT1170 MCU supports a wide temperature range and is suitable for the consumer electronics, industrial and automotive markets.


Technical parameter

Core processor: ARM® Cortex®-M7

Kernel specification: 32-bit single-core

Speed: 800MHz

Connection capability: CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG

Peripherals: Undervoltage detection/reset, DMA, POR, PWM, WDT

Program storage capacity: -

Program memory type: external program memory

EEPROM capacity: -

RAM size: 2M x 8

Voltage - Power supply (Vcc/Vdd) : -

Data converter: A/D 2x12b; D/A 1x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 125°C (TJ)

Mounting type: Surface mount type

Package/housing: 289-LFBGA

Supplier Package: 289-LFBGA (14x14)

Basic product number: MIMXRT1171

Typical application

Ml-based edge applications

Industrial computing design

Motor control and power conversion

Personal health and fitness

Voice-enabled iot devices
