The i.MX RT1040 is equipped with an ARM® Cortex®-M7 core and MIMXRT1042XJM5B has a 32-bit MCU at 528MHz frequency.

summarize

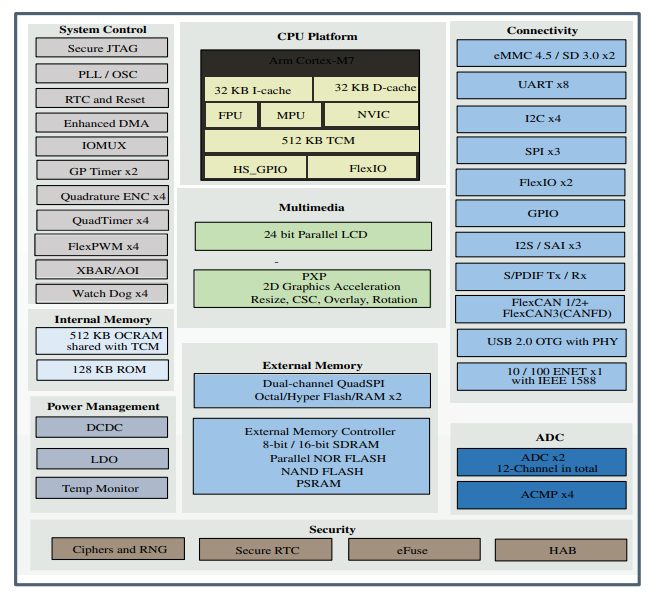

The i.MX RT1040 crossover MCU is based on the Arm® Cortex®-M7 core with real-time performance and highly integrated capabilities for industrial and iot applications.

The MIMXRT1042XJM5B microcontroller operates at up to 528MHz with 512KB of built-in on-chip RAM and can be configured for TCM or general-purpose memory use. The series offers 2D graphics, cameras, and various memory interfaces, as well as a wide range of connectivity interfaces including UART, SPI, I2C, USB, 10/100M Ethernet, and CAN.

The i.MX RT1050 series is supported by the MCUXpresso ecosystem, which includes SDKS, IDE options, and security configuration and configuration tools for rapid development.

MIMXRT1042XJM5B Technical specifications

Core processor: ARM® Cortex®-M7

Kernel specification: 32-bit

Speed: 528MHz

Connection capability: CANbus, Ethernet, I²C, MMC/SD, SAI, SPI, UART/USART, USB

Peripheral: DMA, I²S, LCD, PWM, WDT

Program storage capacity: 128KB (128K x 8)

Program memory type: ROM

EEPROM capacity: -

RAM size: 512K x 8

Voltage - Power supply (Vcc/Vdd) : -

Data converter: -

Oscillator type: external, internal

Operating temperature: -40°C ~ 125°C (TJ)

Mounting type: Surface mount type

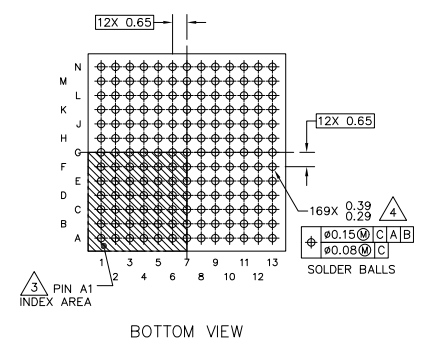

Package/housing: 169-LFBGA

Supplier Package: 169-LFBGA (11x11)

Typical application

industry

Brushless direct current motor (BLDC) control

Building control

Industrial HMI

Mobile robot ecosystem

Motion control and robotics

Motor driver

Permanent magnet synchronous Motor (PMSM)

Electricity and energy

Intelligent lighting

Smart power outlets and lighting switches

Smart city

Inventory and supply chain management

retail

Transport ticket

Smart home

Game accessories

Home panel control

Home appliance safety and monitoring

Major household appliances

Robot electrical apparatus

Smart speaker

The bar speaker
