(Supplied and returned) TI/ Texas Instruments features an 80MHz frequency, 256KB flash TM4C123BH6PZI7 32-bit MCU based on ARM® Cortex®-M4F.

summarize

TI's Tiva™ C-Series ARM Cortex-M4 microcontrollers deliver top-of-the-line performance and advanced integration features, and offer a proven ecosystem of software and development tools that are ideal for designers. This product family is suitable for applications that require cost control while requiring substantial control and connectivity, such as:

■ Low power consumption handheld smart devices

■ Game equipment

■ Home and commercial monitoring

■ Motion control

■ Medical equipment

■ Testing and measuring instruments

■ Factory Automation

■ Fire alarm and security equipment

■ Smart Energy/Smart grid solutions

■ Intelligent lighting control

■ Transportation

For those applications that require special power consumption, the TM4C123BH6PZ microcontroller also has a sleep module with a backup battery, which effectively puts the TM4C123BH6PZ into a low power state when it is not activated for a long time. The sleep module features a power on/power off sequence generator, continuous time counter (RTC), multiple sleep wake options, and dedicated memory with spare batteries, making the TM4C123BH6PZ microcontroller ideal for battery applications.

In addition, the advantage of the TM4C123BH6PZ microcontroller is that it can easily use a variety of ARM development tools and the underlying IP application solution of the system on chip (SoC), as well as the vast number of users.

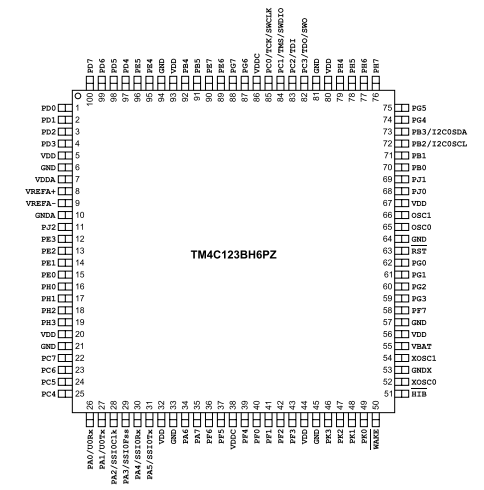

Technical parameter

Core processor: ARM® Cortex®-M4F

Kernel specification: 32-bit single-core

Speed: 80MHz

Connection capability: CANbus, I²C, IrDA, Microwire, QEI, SPI, SSI, UART/USART

Peripherals: Undervoltage detection/reset, DMA, motion PWM, POR, WDT

Number of I/ OS: 69

Program storage capacity: 256KB (256K x 8)

Program memory type: Flash

EEPROM capacity: 2K x 8

RAM size: 32K x 8

Voltage - power supply (Vcc/Vdd) : 1.08V ~ 3.63V

Data converter: A/D 22x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

Package/case: 100-LQFP

Supplier Device Package: 100-LQFP (14x14)
