(Microchip) ATMEGA4808-MU Microcontroller 8-bit 20MHz 48KB FLASH 32VQFN

(Microchip) ATMEGA4808-MU Microcontroller 8-bit 20MHz 48KB FLASH 32VQFN

Source:本站Time:2023-09-15Views:

(Supplied, recycled) Microchip ATMEGA4808-MU microcontroller 8-bit 20MHz 48KB FLASH 32VQFN.summarizeThe ATMEGA4808-MU microcontroller (MCU) belongs to the megaAVR 0 family and uses an AVR processor with a hardware multiplier. The MCU operates at up to…

(Supplied, recycled) Microchip ATMEGA4808-MU microcontroller 8-bit 20MHz 48KB FLASH 32VQFN.


summarize

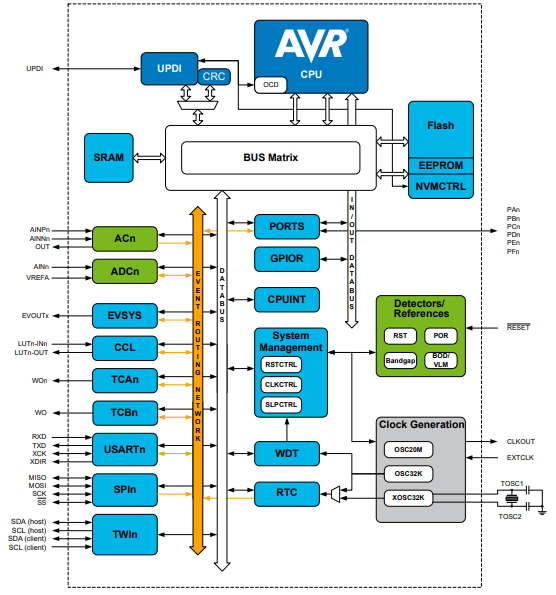

The ATMEGA4808-MU microcontroller (MCU) belongs to the megaAVR® 0 family and uses an AVR® processor with a hardware multiplier. The MCU operates at up to 20MHz, has up to 6kB of SRAM and 256B of EEPROM in a 32-VQFN pin package. The ATmega4808 MCU features the latest technology and a flexible low-power architecture, including the Event System and SleepWalking, accurate simulation features, and advanced peripherals.



Technical parameter

Core processor: AVR

Kernel specification: 8 bits

Speed: 20MHz

Connection capability: I²C, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, WDT

Number of I/ OS: 27

Program storage capacity: 48KB (24K x 16)

Program memory type: Flash

EEPROM capacity: 256 x 8

RAM size: 6K x 8

Voltage - power supply (Vcc/Vdd) : 1.8V ~ 5.5V

Data converter: A/D 12x10b

Oscillator type: Internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

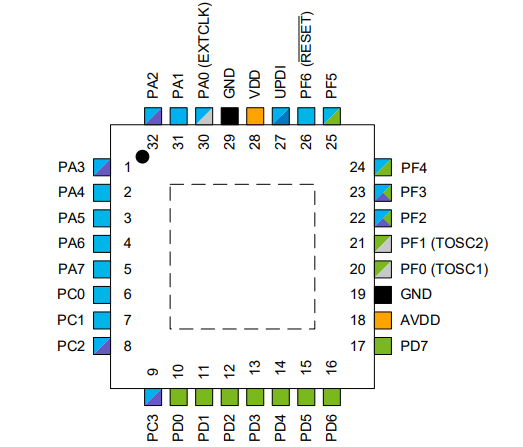

Package/housing: 32-VFQFN bare pad

Supplier Package: 32-VQFN (5x5)

Basic product number: ATMEGA4808
