Supply and recall Marvell 88X5113-A1-BVW4C000 Ethernet transceiver 25GbE/100GbE 4/4 169FCBGA.

summarize

The Marvell® 88X5113 device is a fully integrated, single-chip Ethernet transceiver that supports 25 GBE full-duplex transmission over a variety of media, including fiber, passive copper, and backplanes. The device works as a single-port 100 Gbps Ethernet PHY/ four-port 25 Gbps Ethernet PHY. In this mode, the 88x5113 can perform 100 GBE and 25 GBE transfers over a variety of media, including fiber, passive copper cables, and backplanes. The 88x5113 has long range SERDES and includes auto-negotiation and coefficient training capabilities.

In 100 Gbps and 25 Gbps Ethernet PHY modes, the 88x5113 connects to the MAC/ switch device via the CAU-4 or 25GAUI interface, respectively. On the host interface, the device also supports IEEE 802.3 Article 91 100G Reed Solomon Forward error correction (RS-FEC), as well as IEEE 802.3 Article 108 RS-FEC and IEEE 802.3 Article 74 KR-FEC (for 25 GBE operations). These, along with support for auto-negotiation and training protocols, enable the device to interface with the MAC via a 100G-KR4/25G-KR backplane link.

Device: 88X5113-A1-BVW4C000

Type: Transceiver

Protocols: IEEE 1149.1, IEEE 802.3

Number of drivers/receivers: 4/4

Duplex: Full version

Data rate: 100Gbps, 25Gbps

Voltage - power supply: 0.998V ~ 1.103V, 1.14V ~ 1.26V, 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V

Operating temperature: 0°C ~ 70°C (TA)

Mounting type: Surface mount type

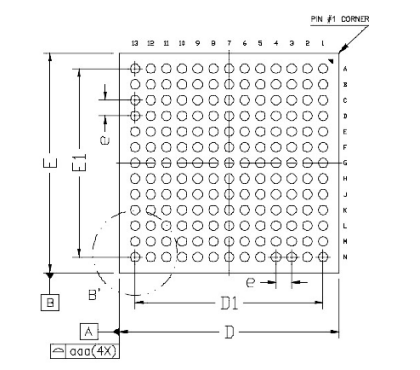

Package/housing: 169-BBGA, FCBGA

Supplier Package: 169-FCBGA (14x14)

Application

25 Gbps Ethernet NIC

100 Gbps/25 Gbps Ethernet line card

100 Gbps/25 Gbps Ethernet backplane
