Sale, Acquisition (onsemi) NCID9210R2 High Speed, dual channel, Bidirectional ceramic digital isolator 16-SOIC.

Device introduction

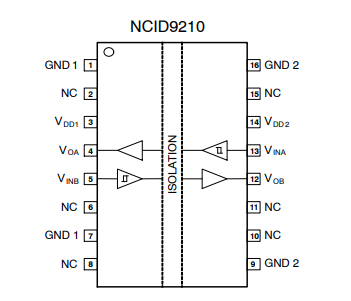

The NCID9210 is a current isolated, full-duplex, bidirectional, high-speed dual-channel digital isolator. The device supports isolated communication, allowing digital signals to communicate between systems without conducting ground loops or hazardous voltages.

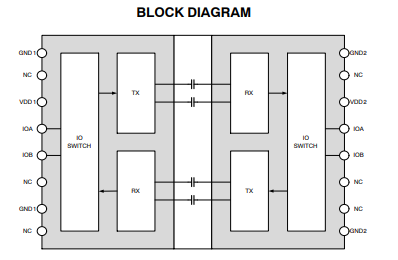

The device uses OnSemi's patented current off-chip capacitor isolation technology and optimized IC design to achieve high isolation and immunity, with high common-mode rejection and power supply rejection. The thick ceramic substrate produces capacitors about 25 times thicker than thin film capacitors and coreless transformers. The result is a combination of the electrical performance benefits of a digital isolator with the safety reliability of a >0.5 mm insulator gate, similar to previous optocouplers.

NCID9210R2 Technical specifications

Technology: capacitive coupling

Type: I²C, SPI

Isolated power supply: None

Number of channels: 2

Input - Side 1/ Side 2:1/1

Channel type: Unidirectional

Voltage - isolation: 5000Vrms

Common-mode transient immunity (min) : 100kV/µs

Data rate: 50Mbps

Propagation delay tpLH/tpHL (maximum) : 25ns, 25ns

Pulse width distortion (Max) : 10ns

Rise/fall time (typical value) : 2,2 ns, 3ns

Voltage - Power supply: 2.5V ~ 5.5V

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

Package/housing: 16-SOIC (0.295", 7.50mm wide)

Supplier device package: 16-SOIC

Basic product number: NCID921

Application

Isolated PWM control

Industrial fieldbus communication

Microprocessor system interface (SPI, I2C, etc.)

Programmable logic control

Isolated data acquisition system

Voltage-level converter
