(MPS) MAQ473 GQE-AEC1 9-bit to 14-bit automotive angle sensor with ABZ increment and PWM output

(MPS) MAQ473 GQE-AEC1 9-bit to 14-bit automotive angle sensor with ABZ increment and PWM output

Source:本站Time:2023-09-09Views:

Sale, Acquisition (MPS) MAQ473GQE-AEC1 9-bit to 14-bit MagAlpha Automotive Angle sensor with ABZ increment and PWM output.summarizeThe MAQ473 MagAlpha™ Automotive Angle sensor is designed to detect the absolute angular position of a permanent magnet,…

Sale, Acquisition (MPS) MAQ473GQE-AEC1 9-bit to 14-bit MagAlpha Automotive Angle sensor with ABZ increment and PWM output.


summarize

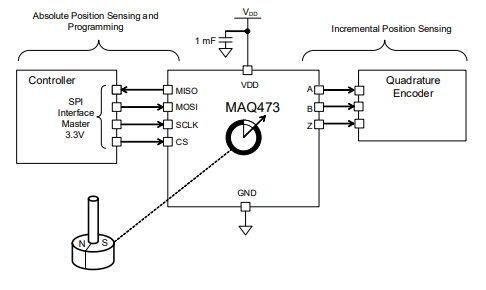

The MAQ473 MagAlpha™ Automotive Angle sensor is designed to detect the absolute angular position of a permanent magnet, typically a radially magnetized cylinder on the axis of rotation. Fast data acquisition and processing provides accurate Angle measurements in the speed range from 0rpm to 60,000 rpm. This device supports a variety of magnetic field strengths and spatial configurations. Supports axle end and off-axis (side mount) configurations.


The MAQ473 features a programmable threshold for magnetic field strength detection that allows the position of the magnet relative to the sensor to be sensed to create functions such as axial movement or diagnostic sensing.


The MAQ473 is AEC-Q100 certified and comes in a 3.0mm X 3.0mm QFN-16 package with wettable flanking.


peculiarity

Absolute Angle encoder with 9-bit to 14-bit resolution

Non-contact sensing for long service life

SPI serial interface with parity bits for Angle reading and chip configuration

Configurable programmable magnetic field strength detection for diagnostic checks

Incremental 12-bit ABZ orthogonal encoder interface with programmable pulses from 1 to 1024 per turn

14-bit PWM output

3.3V, 12mA power supply current

Operating temperature: -40°C to +150°C

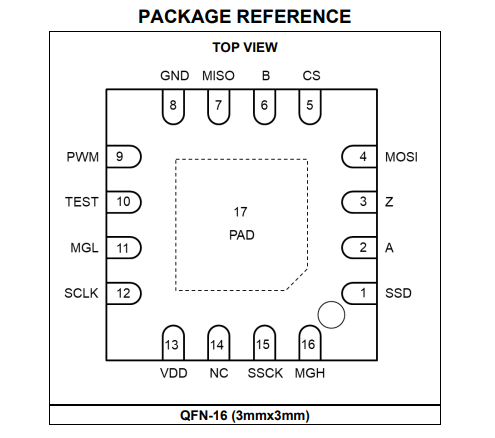

Available in QFN-16 (3mmx3mm) package with wettable flanking

AEC-Q100 Level 1 is available


Application

CARS

Angle encoder

Car Angle or speed sensor

Robot technology


If necessary, please contact Mr. Chen:

Email: sales@hkmjd.com

Company website: www.hkmjd.com
