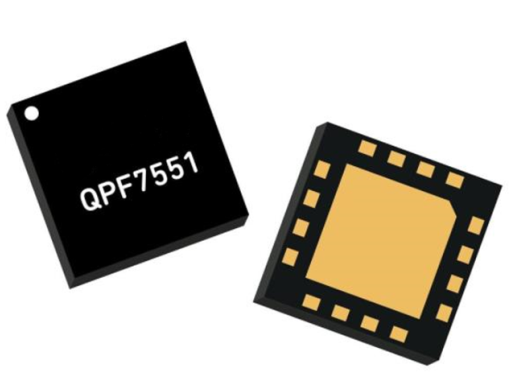

(Recovered and supplied) Qorvo QPF7551 5GHz Wi-Fi® 6 Integrated front-end Module (QPF7551TR13).

summarize

The Qorvo QPF7551 5GHz Wi-Fi ® 6 U-NII1-2a bandBoost Integrated Front end module integrates a 5GHz power amplifier (PA) and UNII1-2a bandBoost in a single device BAW filter, single-pole double-throw switch (SP2T) and bypass low noise amplifier (LNA). The device optimizes PA for 5V supply voltages while ensuring free operation over a wide range. The QPF7551 not only reduces power consumption, but also maintains the highest linear output power and excellent throughput.

Includes integrated chip-level filtering for second and third harmonics, and 2.4 GHz suppression for DBDC operation. For application feedback, a DC power detector is integrated in the QPF7551 package to provide a voltage proportional to a given output power from the transmission path.

The QPF7551 integrates a 5 GHz power amplifier (PA), UNii1-2A BandBoost BAW filter, single-pole double-throw switch (SP2T), and bypassable low noise amplifier (LNA) into a single device.

Device: QPF7551TR13

Product category: RF front-end

Type: RF Front End

Operating frequency: 5.17 THz to 5.33 THz

NF - Noise factor: 3.1dB

Working power supply voltage: 5 V

Installation style: SMD/SMT

Package/Box: SMD-16

Package: Reel

Trademark: Qorvo

Gain: 31 dB

Humidity sensitivity: Yes

Product type: RF Front End

Series: QPF7551

Subcategory: Radio frequency integrated circuits

trait

POUT = MCS11 HE160-43dB Dynamic EVM

POUT = +18dBm MCS11 HE80-43 dB Dynamic EVM

POUT = +22.5dBm MCS9 VHT80/160-35 dB Dynamic EVM

POUT = +26dBm MCS0 HT20 Spectrum template adaptability

Optimized for +5V operating voltage

Tx Gain: 31dB

Noise factor: 3.1dB

13dB accepted gain and 9dB bypass loss

65dB 2.4GHz suppression on the Rx path

Integrated DC power supply detector

Application

Access point

Wireless router

Residential gateway

Client device

Internet of Things
