Supply and Reclaim (ADI) TMC5240AUU 36V 2ARMS+ Intelligent Integrated Stepper Driver and Controller 38-TSOP-EP.

Overview:

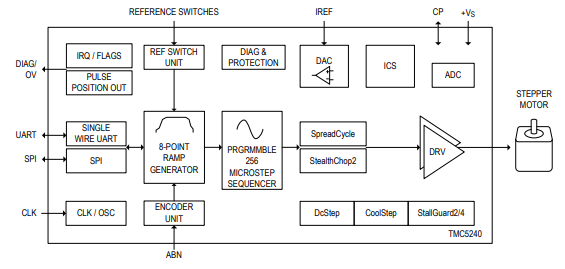

The TMC5240 is an intelligent high-performance stepper motor controller and driver IC with serial communication interfaces (SPI, UART) and extensive diagnostic capabilities. It combines a flexible, snap-optimized ramp generator for automatic target positioning with the industry's most advanced stepper motor driver based on a 256-uSteps built-in stepper and two fully integrated 36V, 3.0A (maximum) H-bridges and non-dissipative integrated current detection (ICS). TRINAMIC's sophisticated StealthCHOP2 chopper ensures absolute noise-free operation with maximum efficiency and optimal motor torque. High integration, energy efficiency and small size enable systems to be miniaturized and scalable for cost-effective solutions. The complete solution minimizes the learning curve while delivering the best performance in its class.

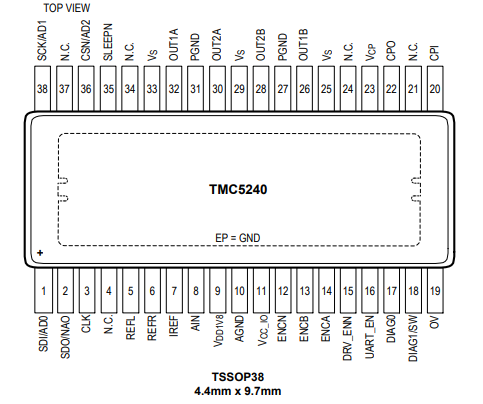

The TMC5240 is available in a small TQFN32 5mm X 5mm package and a thermally optimized TSSOP38 9.7mm X 4.4mm package with exposed pads.

TMC5240AUU Technical parameters:

Motor type - Step: bipolar

Motor type - AC, DC: -

Features: Driver - fully integrated, control and power level

Output configuration: Half bridge (4)

Interface: SPI, UART

Technology: Power MOSFET

Step resolution: 1 ~ 1/256

Application: General purpose

Current - Output: 2.1A

Voltage - Power supply: 4.5V ~ 36V

Voltage - load: 4.5V ~ 36V

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

Package/housing: 38-TFSOP (0.173", 4.40mm wide) bare pad

Supplier device package: 38-TSOP-EP

Target application:

● Textile, sewing machine, knitting machine

● Laboratory and factory automation

● 3D printer, ID card printer/card printer

● Liquid handling, medical applications

● Office automation and document processing

● POS, Massage chair

● ATM, cash recycling machine, cash detector, cash machine

● Closed circuit TV, security

● Pump and valve control

● Heliostat and antenna positioning
