(TI for sale) SN65HVDA1040BQDRQ1 EMC optimized automotive CAN transceiver 1Mbps 8SOIC, we are also recycling this product, if there is demand, please contact us for consultation.

1. Overview

The SN65HVDA1040B-Q1 device meets or exceeds the requirements of ISO 11898 and CAN be used in applications using a controller local Area network (CAN). As a CAN transceiver, this device provides differential transmission capability for the bus and differential reception capability for the CAN controller, with signal transmission rates up to 1 megabit per second (Mbps). The signal transmission rate of a line is the number of voltage conversions performed per second, expressed in units bps (bits per second).

The device is designed to operate in particularly harsh environments and has numerous device protection features such as undervoltage lock (UVLO), overheat heat off, wide common model enclosure and ground failure protection. According to ISO 7637, the bus pins are also protected from external cross wires, -27V to 40V short circuits and voltage transients. The device meets the standards for automotive applications.

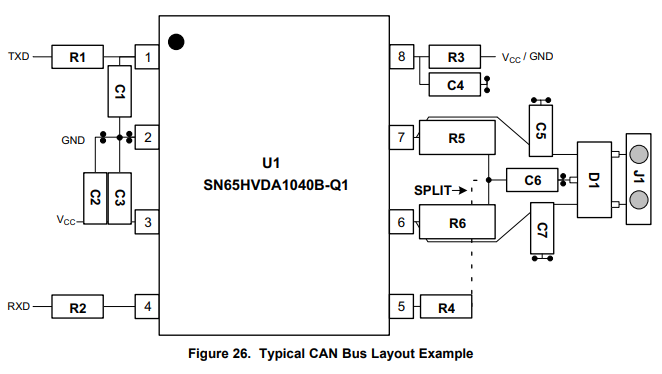

2. Characteristics

• Complies with AEC-Q100 standard for automotive applications

- Temperature class 0: -40 °C to +125°C, TA

- HBM ESD classification level:

- All pins except pin 5, pin 6 and pin 7 are 3A level

- Pin 5, pin 6, and pin 7 are level 3B

- CDM ESD classification level C6

Meet or exceed the requirements of ISO 11898-2 and ISO 11898-5

• Complies with GIFT/ICT standards

• Low current standby mode with bus wake up with a maximum current of less than 12µA

• High electromagnetic compatibility (EMC)

• Suitable for SPLIT voltage sources that achieve bus common-mode stabilization by separating terminals

• Digital inputs are compatible with 3.3V and 5V microprocessors

• Package option: SOIC

• Protection function

- 27V to 40V bus fault protection

- TXD explicit timeout

- Hot shutdown protection

- Power-on and power-off do not interfere with bus input and output

- High bus input impedance with low VCC (ideal passive behavior on the bus when unpowered)

3. Application

• GMW3122 Two-wire CAN physical layer

• SAE J2284 high-speed CAN for automotive applications

• SAE J1939 standard data bus interface

• ISO 11783 data bus interface

• NMEA 2000 standard data bus interface
