Shenzhen Mingjiada Electronics Co., Ltd. distributes TI (200mA) LP8864QDCPRQ1 The LP8864-Q1 is an automotive class high efficiency LED driver with a boost controller.

Device Overview

The Texas Instruments LP8864-Q1 high efficiency LED driver is equipped with a boost controller. The four high-precision current traps support phase shifting, i.e., they are automatically adjusted according to the number of channels used, and the LED brightness can be globally controlled via the I2C interface or PWM input. The boost converter provides adaptive output voltage control based on the residual voltage of the LED current traps. This feature minimises power consumption by regulating the boost voltage to the lowest level that will satisfy the need under all conditions. A wide range of adjustable frequencies allows the LP8864-Q1 to avoid interference in the AM radio band.The LP8864-Q1 supports built-in hybrid PWM dimming and analogue current dimming, which reduces EMI, extends LED life, and improves overall optical efficiency.

Features

- Complies with AEC-Q100 for automotive applications:

- Device Temperature Class 1: -40°C to +125°C, TA

- Device HBM ESD Classification 2

- Device CDM ESD Classification C4B

- Input voltage operating range: 3V to 48V

- Four high-precision current traps

- Up to 200mA DC current per current trap

- Current matching of 1% (typical)

- Dimming ratio of 32000:1 using 152Hz LED output PWM frequency

- Up to 16-bit LED dimming resolution using I2C or PWM inputs

- Configurable for 8 LED strings

- Automatic phase shift PWM dimming

- 12-bit analogue dimming

- Up to 48V VOUT Boost or SEPIC DC/DC Controller

- Switching frequencies from 100kHz to 2.2MHz

- Boost spread spectrum function reduces EMI

- Boost synchronous input with external clock to set boost switching frequency

- Automatic output voltage discharge when boost is disabled

- Multiple fault diagnostic functions

Applications

- Provides backlighting for the following applications:

- Automotive infotainment systems

- Automotive infotainment systems

- Automotive infotainment systems Automotive instrument clusters

- Head-Up Display (HUD)

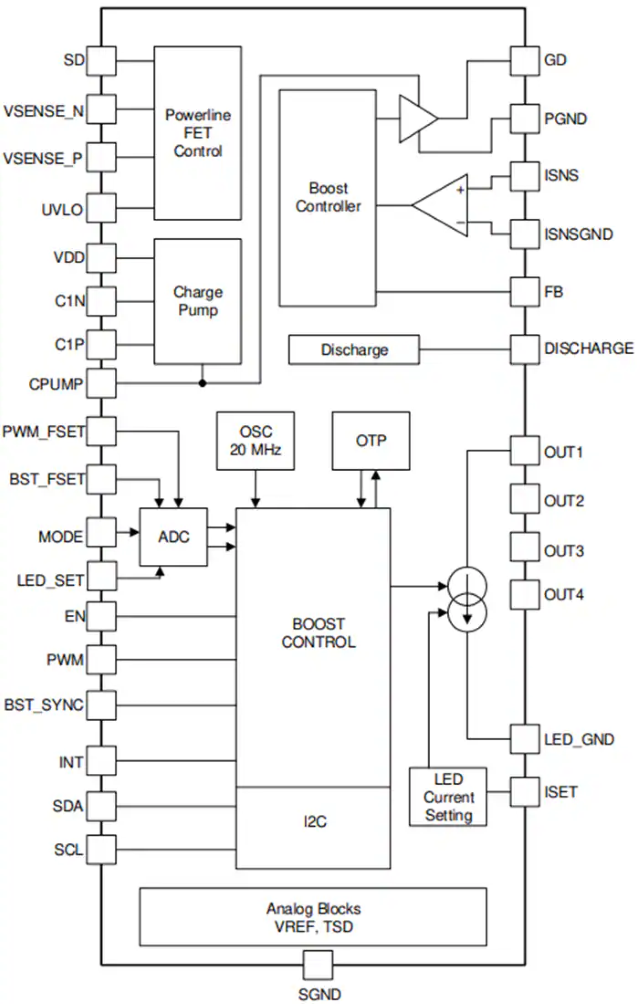

Function Block Diagram
