(onsemi) Temperature sensor N34TS108C6ECT5G 12-bit digital, local -40°C to 125°C, 6WLCSP

(onsemi) Temperature sensor N34TS108C6ECT5G 12-bit digital, local -40°C to 125°C, 6WLCSP

Source:本站Time:2023-08-26Views:

Supply, Recovery (onsemi) Temperature sensor N34TS108C6ECT5G 12 bit digital, local -40C to 125C, 6WLCSP, please contact us if you need.Device description:The N34TS108 is a digital output temperature sensor with a dynamic programmable limit window and …

Supply, Recovery (onsemi) Temperature sensor N34TS108C6ECT5G 12 bit digital, local -40°C to 125°C, 6WLCSP, please contact us if you need.

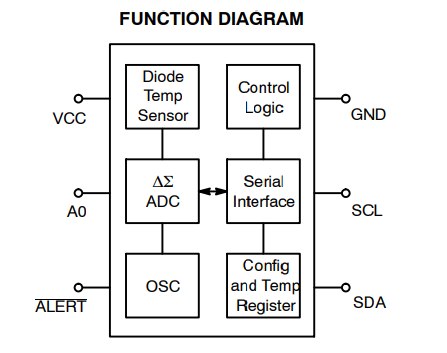

Device description:

The N34TS108 is a digital output temperature sensor with a dynamic programmable limit window and an alarm function for too low and too high temperatures. These features provide optimized temperature control without the need for frequent temperature readings by the controller or application processor.

The N34TS108 has SMBus and dual-wire interface compatibility and allows up to three devices to be connected on a single bus with SMBus alarm capability.

The N34TS108 is ideally suited for thermal management optimization in a variety of consumer electronics, computer and environmental applications. The device's temperature rating ranges from -40 °C to +125°C.


N34TS108C6ECT5G Product properties:

Product category: Temperature sensor

Sensor type: Digital, local

Sensing temperature - Local: -40°C ~ 125°C

Sensing temperature - Remote: -

Output type: SMBus

Voltage - Power supply: 1.4V ~ 3.6V

Resolution: 12 b

Features: Single trigger, programmable limit, off mode, standby mode

Accuracy - Max (Min) : ±0.75°C (±1°C)

Test conditions: -20°C ~ 85°C (-40°C ~ 125°C)

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

Package/housing: 6-UFBGA, WLCSP

Supplier Device Package: 6-WLCSP (1.19x.79)

Basic product number: N34TS108

Typical applications:

• Smart phone and tablet heat management

• Battery Management

• Thermostat control

• The ambient temperature is too low and too high to protect monitoring and HVAC
