(Supply and Demand TI) LM536035QPWPRQ1 (3A) 3.9V to 36V synchronous 2.1MHz buck converter for automotive applications.

Overview:

The LM536035QPWPRQ1 step-down regulator is designed for automotive applications and provides 5V/3A outputs with input voltages up to 36V. When the input voltage is up to 20V, the device can use advanced high-speed circuitry to regulate the voltage while providing 5V output at a switching frequency of 2.1MHz. The device uses an innovative architecture that provides a 3.3V regulated output even when the input voltage is only 3.5V. The product is fully optimized for automotive customers.

The input voltage of the device is up to 36V and the maximum transient voltage allowed is 42V, which simplifies the input surge protection design. The leak-open reset output has filtering and delay functions to provide a correct indication of system status. Because of this feature, the device does not need to use additional monitoring components, which saves cost and board space. The device seamlessly switches between both PWM and pulse-frequency modulation (PFM) modes and operates at a current of only 24µA under no load, ensuring high efficiency and excellent transient response under all load conditions.

Features:

3A Maximum load current

Input voltage range: 3.5V to 36V, transient voltage up to 42V

Output voltage options: 5V or 3.3V (ADJ)

2.1MHz fixed switching frequency

±2% output voltage tolerance

Junction temperature range: -40°C to 150°C

1.7µA Turn-off current (typical)

Input power current 24µA (typical) without load

No external feedback divider required for 5V or 3.3V outputs

Reset output with filtering and delay

Automatic light load mode for increased efficiency

User optional Forced Pulse Width Modulation Mode (FPWM)

Built-in loop compensation, soft start, current limiting, thermal shutdown, undervoltage lock (UVLO), and external frequency synchronization

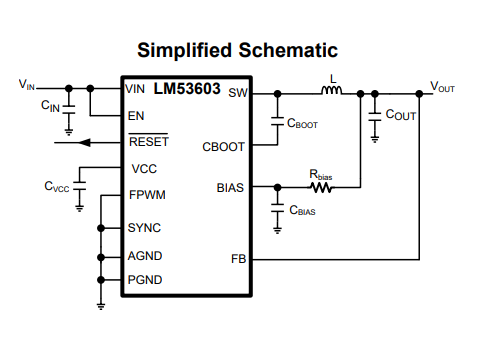

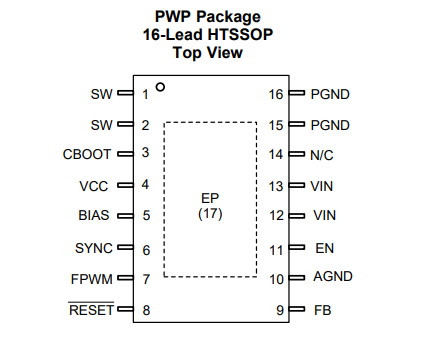

Heat resistant enhanced 16-pin package: 5mm x 4.4mm x 1mm

Meets AEC-Q100 automotive standards

Applications:

• Navigation/Global Positioning System (GPS)

• Instrument panel

Advanced Driver Assistance Systems (ADAS), infotainment, Head-up display (HUD)
