Recovery and Supply Power Management (PMIC) LTC7150SJY-4 20V, 20A synchronous Buck regulator 42-LFBGA.

Product Overview:

The LTC7150SJY-4 is a high-efficiency, monolithic, synchronous step-down regulator capable of delivering 20A to a load. The device adopts a phase-locked controlled on-time constant frequency and current mode architecture. PolyPhase operation allows multiple LTC7150S regulators to operate out of phase, which reduces the number of input and output capacitors required. The operating supply voltage ranges from 3.1V to 20V.

The operating frequency of the device can be set in the range of 400kHz to 3MHz using an external resistor. The high frequency operation capability allows the use of inductors and capacitors of smaller physical dimensions. For applications that are sensitive to switching noise, the LTC7150S synchronizes externally from 400kHz to 3MHz. The PHMODE pin allows the user to control the phase of the output clock signal. The unique constant frequency/controlled turn-on time architecture is ideal for high buck ratio applications that operate at high frequencies while requiring fast transient responses. The LTC7150S uses the second generation Silent Switcher technology with a built-in integrated bypass capacitor to provide a highly efficient solution with superior EMI performance at high frequencies.

Features:

AEC-Q100 is certified for automotive applications

Silent Switcher®2 architecture to reduce EMI

VIN range: 3.1V to 20V

VOUT range: 0.6V to 5.5V

Differential VOUT remote detection

Adjustable frequency: 400kHz to 3MHz

PolyPhase® works: up to 12 phases

Output trace and soft boot

Standard accuracy: 0.6V ±1% (temperature range)

Current operating mode provides excellent line and load transient response

Precise 1.2V operating pin threshold

Supports mandatory continuous/intermittent mode

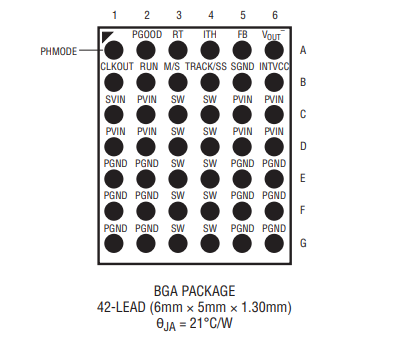

42 Pin 6mm x 5mm x 1.3mm BGA package

Applications:

• Server power applications

• Distributed power system

• Point-of-load power supply for ASics, FPgas, DSPS, microprocessors, etc
