(ADI) LTM2173HY-14 14-bit, 80Msps low power four-channel Analog-to-Digital Converter (ADC) 140BGA

(ADI) LTM2173HY-14 14-bit, 80Msps low power four-channel Analog-to-Digital Converter (ADC) 140BGA

Source:本站Time:2023-08-14Views:

Supply, Recovery (ADI/ Adno) LTM2173HY-14 14-bit, 80Msps low power four-channel Analog-to-Digital Converter (ADC) 140BGA.Product Details:The LTM2303-14 is a 4-channel synchronous sampling 14-bit analog-to-digital converter for digitizing high frequenc…

Supply, Recovery (ADI/ Adno) LTM2173HY-14 14-bit, 80Msps low power four-channel Analog-to-Digital Converter (ADC) 140BGA.


Product Details:

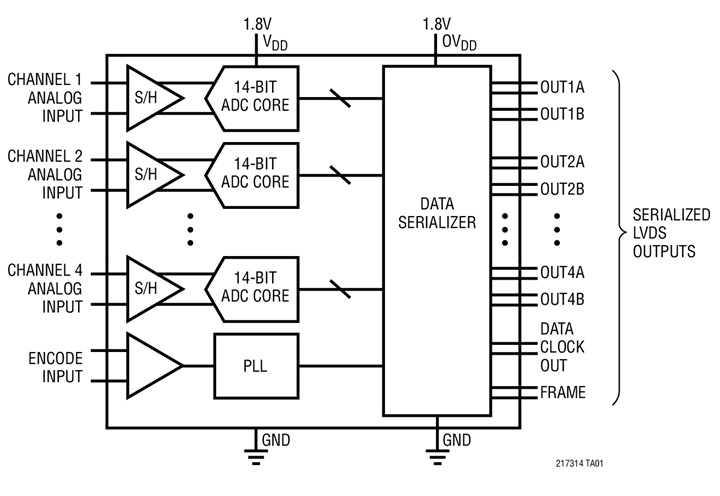

The LTM2303-14 is a 4-channel synchronous sampling 14-bit analog-to-digital converter for digitizing high frequency, wide dynamic range signals. Ac performance includes 73dB SNR and 88dB spury-free dynamic range (SFDR). Low power consumption per channel reduces heat in applications with high channel counts. Integrated bypass capacitors and straight-through pin arrangements reduce overall board space requirements.


The digital output of the device is serial LVDS, which can greatly reduce the number of data lines. Each channel outputs two bits at a time (2-wire mode). At lower sampling rates, a bit per channel option is available (1-wire mode).


Features:

4-channel synchronous sampling ADC

73dB SNR

88dB SFDR

Low power consumption: 96mW per channel

1.8V single power supply

Serial LVDS output: 1 or 2 bits per channel

Optional input range: 1VP-P to 2VP-P

800MHz Full power bandwidth S/H

Switch off and nap mode

Serial SPI port for configuration

Internal bypass capacitor without external components

140 pin (11.25mm x 9mm) BGA package


Applications:

• Car

• Communication

• Cell base station

• Software defined radio

• Portable medical imaging

• Multi-channel data acquisition

• Non-destructive testing


If interested, please contact Mr. Chen:

Email: sales@hkmjd.com

Company website: www.hkmjd.com
