(Recalled, supplied) New (ADI/ ADno) AD9203WARUZRL7 10-bit, 40MSPS, low power ADC 28TSSOP.

Overview:

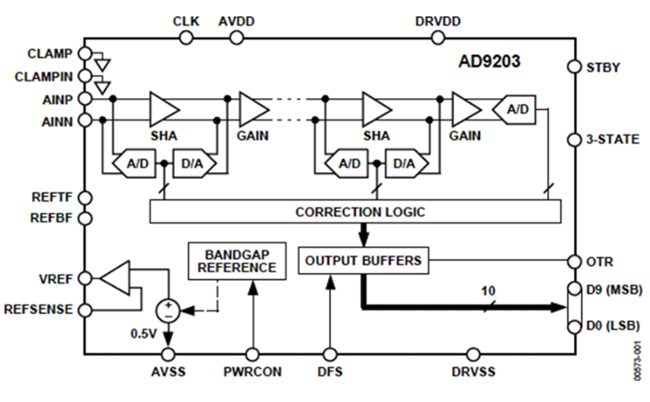

The AD9203 is a single-chip, 10-bit, 40-msps analog-to-digital converter (ADC) powered by a single supply with a built-in on-chip voltage reference source. It uses a multistage differential pipeline architecture with a data rate of up to 40 MSPS, ensuring no code loss over the entire operating temperature range. The input range can be adjusted from 1 V p-p to 2 V p-p.

The ADC has an on-chip programmable voltage reference source. An external reference voltage source can also be selected to meet the DC accuracy and temperature drift requirements of the application. When operating at a lower sampling rate, an external resistor can be used to reduce power consumption.

Use a single clock input to control all internal conversion cycles. The digital output data format is standard binary or binary complement. An over-the-range (OTR) signal indicates an overflow condition, which can be determined by the most significant bit whether it is an underflow or an upflow. Powered by a 2.7V to 3.6V supply, the AD9203 is ideal for low-power operation in high-speed portable applications.

Features:

Power consumption: 74 mW (3 V, 40 MSPS)

Significant bits (ENOB) : 9.5 (Fin = 20 MHz)

Operating voltage range: 2.7V to 3.6V

Input range: 1 Vp-p to 2 Vp-p differential or single-ended

Differential linearity: ±0.25 LSB

Adjustable on-chip reference voltage source

Power saving (standby) mode: 0.65mW

Adjustable power consumption

If undersampling exceeds 130 MHz

Over range indication

Binary complement or standard

Binary output

Internal clamp circuit

Certified for automotive applications

AD9203WARUZRL7 Technical parameters:

Digits: 10

Sampling rate (per second) : 40M

Input number: 1

Input type: differential, single-ended

Data interface: Parallel

Configuration: S/H-ADC

Ratio -S /H:ADC: 1:1

Number of A/D converters: 1

Architecture: Pipeline

Reference type: External, internal

Voltage - power supply, analog: 2.7V ~ 3.6V

Voltage - power supply, number: 2.7V ~ 3.6V

Features: -

Operating temperature: -40°C ~ 85°C

Package/Housing: 28-TSSOP (0.173", 4.40mm wide)

Supplier device package: 28-TSSOP

Mounting type: Surface mount type
