Recycle, Supply (Infineon) 650V IKW30N65EL5XKSA1 IGBT optimized to provide excellent performance in designs with switches <10kHz.

Description:

Infineon TRENCHSTOP™ 5 L5 (Low Saturation 5) IGBTs are at the other end of the switching frequency range and are optimized to provide excellent performance in designs with switching <10kHz. The Infineon L5 is specifically optimized for the low switching frequency range of 50Hz to 20kHz. The L5 also has the following features: low 1.05V VCE(sat) for 30A IGBTs, minimum switching loss at cosφ<1 in reactive power mode, and high thermal stability of electrical parameters. The 1.05V VCE(sat) TRENCHSTOP™ 5 L5 with a low-speed switching device enables new levels of efficiency.

Features:

The advantages of using low VCE(sat) L5 technology are as follows:

Very low collector-emitter saturation voltage (VCEsat)

Excellent on-off and on-off loss

650V breakdown voltage

Low grid charge

Maximum junction temperature: 175°C

Meets target application requirements according to JEDEC standards

lead-free

Comply with RoHS directive

IKW30N65EL5XKSA1 Technical parameters:

Voltage-emitter breakdown (Max) : 650 V

Current - Collector (Ic) (Max) : 85 A

Current-collector pulse (Icm) : 120 A

Vce(on) (Max.) for different Vge and Ic: 1.35V@15V, 30A

Power - Maximum: 227 W

Switching power: 470µJ (on), 1.35mJ (off)

Input type: Standard

Grid charge: 168 nC

Td (On/off) value at 25°C: 33ns/308ns

Test conditions: 400V, 30A, 10 ohms, 15V

Reverse recovery time (trr) : 100 ns

Operating temperature: -40°C ~ 175°C (TJ)

Installation type: Through hole

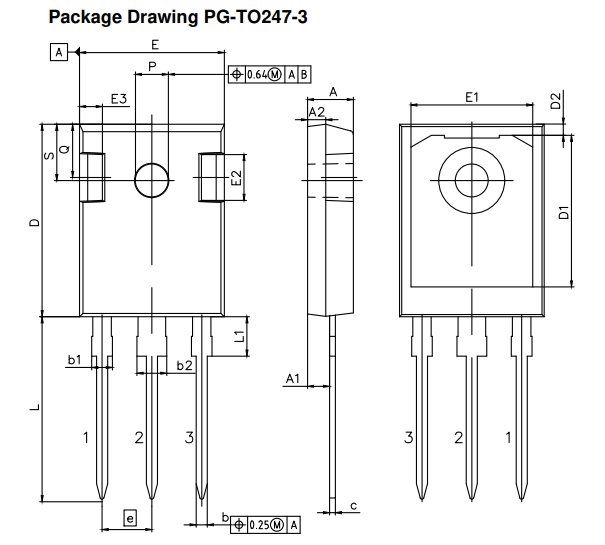

Package/housing: TO-247-3

Supplier device package: PG-TO247-3

Basic product number: IKW30N65

Applications:

UPS

Solar photovoltaic inverter

Welding machine
