(Recovered, supplied) 2Mb, CY15V102QN-50SXE ferroelectric F-RAM memory IC SPI 50MHz 8SOIC.

Product Details:

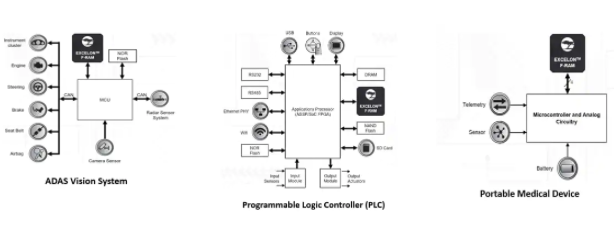

The Excelon™ ferroelectric RAM (F-RAM) is a next-generation F-RAM with low-power, mission-critical, non-volatile memory. The Excelon series combines ultra-low power operation with high-speed interfaces, instant non-volatility and durability for unlimited read/write cycles. This makes Excelon an ideal data recording memory for portable medical, wearable, iot sensors, industrial and automotive applications. There are three different Excelon series to choose from: Excelon-LP, Excelon-Ultra and Excelon-Auto.

Excelon F-RAM Features:

Typical standby current and sleep current are 1μA and 0.1μA respectively, which is only 1/150 of the current F-RAM

Compared with the competitive SPI F-RAM, the performance is improved by more than 10 times due to the addition of 108MHz QSPI

With NoDelay™ write feature, data is captured instantly without the need for inhalation time and power backup without any additional elements

The density options are 2Mbit, 4Mbit, and 8Mbit

Operating voltage range: 1.71V to 1.89V and 1.80V to 3.60V

Commercial (0°C to +70°C), industrial (-40°C to +85°C), Automotive A (-40°C to +85°C) and automotive E (-40°C to +125°C) temperature grades

CY15V102QN-50SXE Technical parameters:

Memory type: non-volatile

Memory format: FRAM

Technology: FRAM (Ferroelectric RAM)

Storage capacity: 2Mb

Memory organization: 256K x 8

Memory interface: SPI

Clock frequency: 50 MHz

Write cycle time - word, page: -

Voltage - power supply: 1.71V ~ 1.89V

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

Package/housing: 8-SOIC (0.209", 5.30mm wide)

Supplier device package: 8-SOIC
