(Recycled FPGA) LCMXO1200C-3FTN256I Programmable Logic Device (PLD) with unlimited reconfiguration

(Recycled FPGA) LCMXO1200C-3FTN256I Programmable Logic Device (PLD) with unlimited reconfiguration

Source:本站Time:2023-08-03Views:

Supply, (recycled FPGA) LCMXO1200C-3FTN256I Programmable Logic Device (PLD) IC 211 9421 1200 256-LBGA with unlimited reconfiguration.Overview:The MachXO PLD is Lattices non-volatile, infinitely reconfigurable programmable logic device (PLD) with 256-2…

Supply, (recycled FPGA) LCMXO1200C-3FTN256I Programmable Logic Device (PLD) IC 211 9421 1200 256-LBGA with unlimited reconfiguration.


Overview:

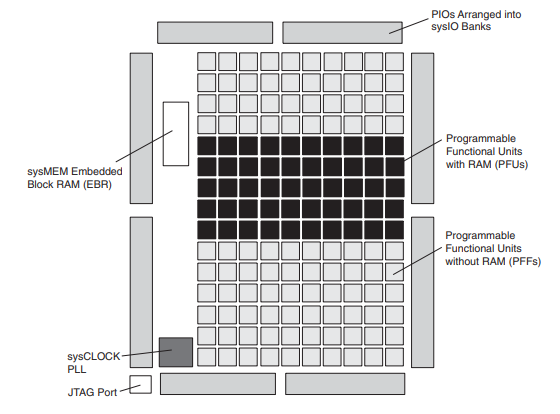

The MachXO PLD is Lattice's non-volatile, infinitely reconfigurable programmable logic device (PLD) with 256-2280 lookup tables (LUTs), 73-271 I/ OS, up to 27.6Kb sysMEM embedded block RAM, up to 7.7Kb distributed RAM, and more. Programmable sysIO ™ buffer support LVCMOS / 1.2/1.8/1.5, 3.3/2.5 LVTTL. PV and an LVDS Bus - an LVDS and LVPECL, RSDS, device support 3.3 V, 2.5 V, 1.8 V or 1.2 V power supply, IEEE 1532 is compatible in systems programming and is primarily used in a variety of end markets including consumer electronics, automotive electronics, communications, computing, industrial and medical.


Features:

Up to 27.6 Kbit of sysMEM™ embedded RAM block and 7.7Kbit of distributed RAM

The logic in SRAM can be reconfigured in milliseconds through the JTAG port

IO Supports LVCMOS, LVTTL, PCI, LVDS, Bus-LVDS, LVPECL, and RSDS

Each device has two analog PLLS for clock doubling, frequency splitting, and phase shifting

Available in TQFP, csBGA, caBGA and ftBGA packages


LCMXO1200C-3FTN256I Technical parameters:

LAB/CLB number: 150

Number of logical elements/units: 1200

Total RAM bits: 9421

Number of I/ OS: 211

Voltage - Power supply: 1.71V ~ 3.465V

Mounting type: Surface mount type

Operating temperature: -40°C ~ 100°C (TJ)

Package/housing: 256-LBGA

Supplier Package: 256-FTBGA (17x17)

Basic product number: LCMXO1200


If there is any need, please contact Mr. Chen:

Email: sales@hkmjd.com

Company website: www.hkmjd.com
