(Recovered, supplied) Embedded Vision Processing (FPGA) LIFCL-40-7BG256C Field Programmable Gate Array IC 163I/O 256-CABGA.

Overview:

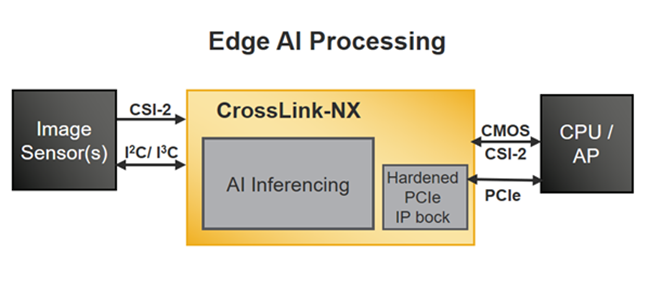

The CrossLink-NX™ FPGA is based on the 28nm FD-SOI Lattice Nexus platform. CrossLink-NX FPgas offer small size, high reliability and excellent performance. The device is suitable for a variety of applications, including embedded vision. Applications include sensor and display bridging, sensor aggregation, sensor overlap, and edge AI inference.

Features:

Power consumption is reduced by up to 75% compared to competing products

FD-SOI supports programmable reverse bias, which optimizes power consumption and performance

Compared with competitive products, only 1/10

The smallest package of each density is available, ranging in size from 16mm2 to 100mm2

Multiple packaging options for a compact system design

Highly reliable

The insulated gate of FD-SOI technology has a small area that is susceptible to soft errors caused by particles, so the soft error rate (SER) is improved by a factor of 100

High performance:

2.5Gbps MIPI D-PHY, 5Gbps PCIe, 1.5Gbps Differential I/O provide the highest capacity bridging high-speed interface for a variety of applications

Super fast I/O configuration (3ms)

Complete device configuration (8ms to 14ms)

Most embedded memory per LC (170 bits /LC) accelerates AI processing

LIFCL-40-7BG256C Technical parameters:

LAB/CLB number: 9750

Number of logical elements/units: 39,000

Total RAM bits: 1548288

Number of I/ OS: 163

Voltage - Power supply: 0.95V ~ 1.05V

Mounting type: Surface mount type

Operating temperature: 0°C ~ 85°C (TJ)

Package/housing: 256-LFBGA

Supplier Package: 256-CABGA (14x14)
