Shenzhen Mingjiada Electronics Co., Ltd (Supply, Recycle TI) Microcontroller TMS5700714APGEQQ1 ARM Cortex-R5 based high-performance 32-bit microcontroller Brand new original quality assurance!

Device Description:

The TMS5700714APGEQQ1 device is part of the Hercules TMS570 family of high-performance automotive-grade ARM® Cortex®-R-based MCUs. The device comes complete with documentation, tools, and software to assist in the development of ISO26262 and IEC61508 functional safety applications.

The TMS5700714APGEQQ1 device integrates an ARM Cortex-R4F floating-point CPU that delivers a highly efficient 1.66 DMIPS/MHz and is configured to run up to 160 MHz, providing instruction execution speeds of up to 265 DMIPS. The TMS570 device supports the word-invariant big-end [BE32] format. format.

The TMS5700714APGEQQ1 device has a 768KB integrated Flash memory and 128KB RAM configuration with single-bit error correction and double-bit error detection. The Flash memory on this device is electrically erasable and programmable non-volatile memory via a 64-bit wide data bus interface. The Flash memory uses a 3.3V power input (same level as the I/O power supply) for all read, program, and erase operations.The SRAM supports single-cycle read and write accesses in byte, half-word, word, and double-word modes over the entire supported frequency range.

The TMS5700714APGEQQ1 device features peripherals for real-time control applications, including two Next Generation High-End Timer (N2HET) timing coprocessors with up to a total of 44 I/O terminals, seven enhanced PWM (ePWM) modules with up to 14 outputs, six enhanced capture (eCAP) modules, two enhanced quadrature encoder pulse (eQEP) modules and two enhanced quadrature encoder pulse (eQEP) modules. Pulse (eQEP) modules and two 12-bit analogue-to-digital converters (ADCs) supporting up to 24 inputs.

Features

High-performance automotive-grade microcontroller (MCU) for dual CPUs running in lock-step for safety-critical applications

ARM Cortex-R4F 32-bit RISC CPU

1.66 DMIPS/MHz with 8-stage pipeline

Single and double precision FPUs

12-zone memory protection unit (MPU)

Open architecture with third party support

Operating Conditions

Up to 160MHz system clock

Kernel supply voltage (VCC): 1.14V to 1.32V

I/O supply voltage (VCCIO): 3.0V to 3.6V

Integrated memory

768KB (TMS570LS0714) or 1MB (TMS570LS0914) Flash (with ECC)

128KB RAM (with ECC)

64KB Flash (with ECC) for EEPROM emulation

Common Platform Architecture

Direct Memory Access (DMA) Controller

Frequency Modulated Phase Locked Loop (FMPLL) with Built-in Weekly Hop Detector

IEEE 1149.1 JTAG boundary-scan and ARM CoreSight components (TMS570LS0914 only)

Advanced JTAG Security Module (AJSM) (TMS570LS0914 only)

Up to 64 general purpose I/O (GIO) pins (TMS570LS0914 only)

Enhanced Timing Peripherals

Two Next Generation High-End Timer (N2HET) modules

Two 12-bit multi-channel buffered ADC modules

Multiple communication interfaces

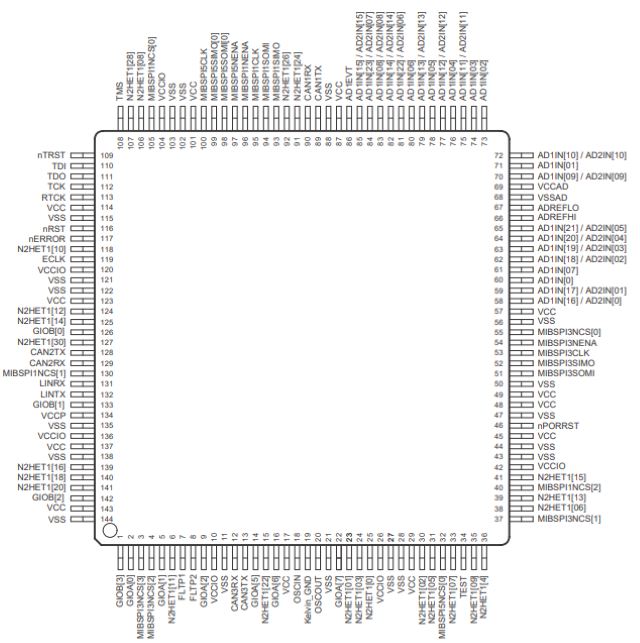

Package: 144-pin quadrilateral flat package (PGE) [green]

Applications

- Electric Power Steering (EPS)

- Braking systems (ABS and ESC)

- Hybrid Electric Vehicle (HEV) and Electric Vehicle (EV) inverter systems

- Battery management systems

- Active Driver Assistance Systems

- Space and Avionics

- Railway

- Off-road vehicles
