(Recycled, supplied) Kinetis® KL4x MKL43Z128VMP4 Ultra-low power microcontroller (MCU) 48MHz based on Cortex®-M0+ core 128KB FLSH 64-MAPBGA.

Overview:

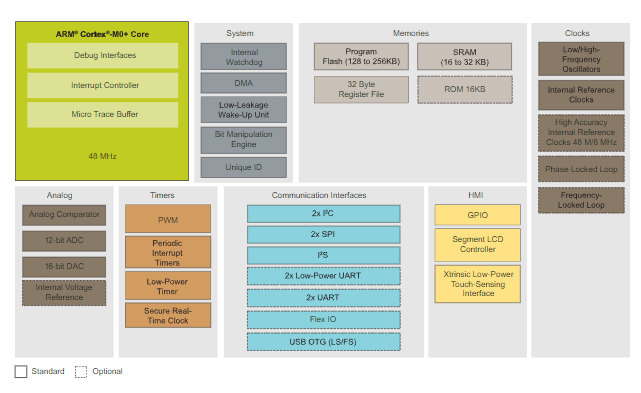

Based on the Arm® Cortex-M0 + core, the Kinetis KL4x microcontroller combines ultra-low power performance with a wide range of analog, communication, timing and control peripherals, featuring a USB 2.0 OTG controller and a low-power segmented LCD controller that can support up to 376 segments. The Kinetis KL4x MCU also features several flexible low-power modes, including a new compute clock mode that reduces dynamic power consumption by placing peripherals in asynchronous stop mode. Integrated security circuits prevent illegal access to RAM and flash content. The KL4x MCU family is compatible with the Cortex-M4-based Kinetis K40 MCU family for migration to higher performance and a richer feature set.

MKL43Z128VMP4 Technical parameters:

Core processor: ARM® Cortex®-M0+

Kernel specification: 32-bit single-core

Speed: 48MHz

Connection capacity: I²C, SPI, UART/USART, USB

Peripheral: DMA, I²S, LCD, LVD, POR, PWM, WDT

Number of I/ OS: 50

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 16K x 8

Voltage - supply (Vcc/Vdd) : 1.71V ~ 3.6V

Data converter: A/D 16x16b; D/A 1x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 105°C (TA)

Mounting type: Surface mount type

Package/case: 64-LFBGA

Supplier Package: 64-MAPBGA (5x5)

Basic product number: MKL43Z128

Applications:

Smart watch

thermostat

flowmeter

Blood glucose monitor

Multi-parameter patient monitor

Building control

Home automation

Electronic scale
