(Recovered sensor) Sensirion SHT40-AD1B-R3 Digital humidity and temperature sensor ±1.8% RH SMD

(Recovered sensor) Sensirion SHT40-AD1B-R3 Digital humidity and temperature sensor ±1.8% RH SMD

Source:本站Time:2023-07-26Views:

Supplied, (Recovered sensor) Sensirion SHT40-AD1B-R3 Digital humidity and temperature sensor 1.8% RH SMD surface mount type.Product Introduction:The Sensirion SHT4x digital humidity and temperature sensors provide constant temperature accuracy over a …

Supplied, (Recovered sensor) Sensirion SHT40-AD1B-R3 Digital humidity and temperature sensor ±1.8% RH SMD surface mount type.


Product Introduction:

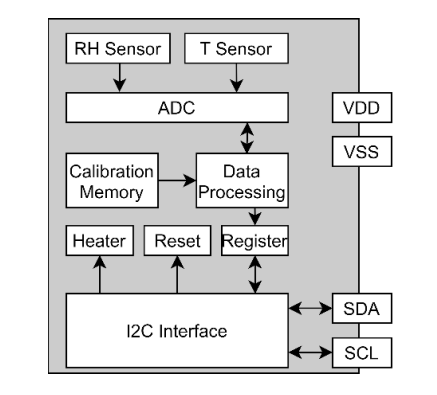

The Sensirion SHT4x digital humidity and temperature sensors provide constant temperature accuracy over a wide measurement range. This fourth-generation sensor features ultra-low power consumption in a small QFN package. This fully calibrated sensor features a linearized digital output, NIST traceability and I2C fast mode +. The device is reflow soldable and operates in a condensing environment. The Sensirion SHT4x digital humidity and temperature sensor has a supply voltage range of 1.08V to 3.6V, an idle current of 80nA, and an operating range of 0% to 100% relative humidity and -40°C to +125°C. The SHT4x is packaged in a reel and is adapted to the standard SMD assembly process, making it ideal for high-volume applications.


Features:

Ultra-low power consumption

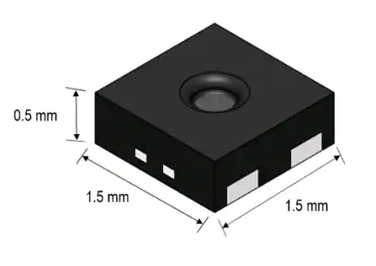

Small QFN package size: 1.5mmx1.5mmx0.5mm

Provides constant accuracy over a wide measurement range

Fully calibrated, linearized digital output

NIST traceability

Reflow soldering is possible

I2C Fast Mode +

Operate in a condensing environment

Variable power heater

Ideal for high volume applications


Applications:

• Climate control

• Anti-fog

Relative humidity/temperature (RH/T) condition monitoring for climate management of critical electronics


Size:


If necessary, please contact Mr. Chen:

Email: sales@hkmjd.com

Company website: www.hkmjd.com
