Supply, Recycle (ADI Adno) 16MHz ADUCM350BBCZ 32-bit microcontroller with integrated Cortex M3 core - MCU 384KB Flash 120-CSPBGA, please contact us if you need to consult!

Product Introduction:

The ADUCM350BBCZ (MCU) is a configurable impedance converter and potentiostat with current and voltage measurement for electrochemical sensors and biosensors. It is a complete, button-battery powered, high-precision MCU integrated solution for portable device applications such as point-of-care diagnostics and wearable devices for monitoring vital signs.

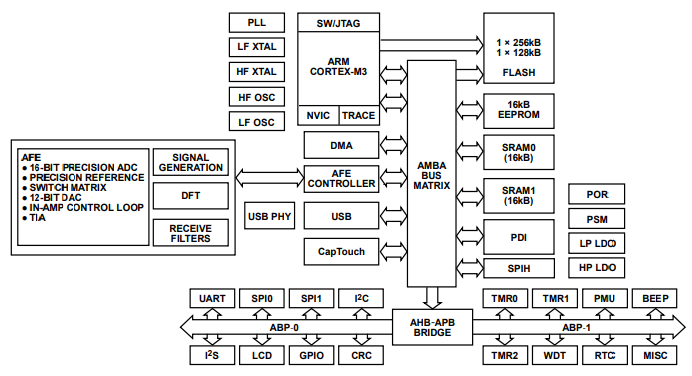

The ADuCM350 analog front end (AFE) features a 16-bit, precision, 160 kSPS analog-to-digital converter (ADC). 0.17% precision reference voltage source; 12-bit, loss-free digital-to-analog converter (DAC); And a reconfigurable ultra-low leakage switch matrix. Featuring four voltage measurement channels, up to eight current measurement channels, and an impedance measurement DFT engine, the ADuCM350 also has an ARM Cortex-M3-based processor, memory, and all I/O connections to support portable meters with displays, USB communications, and active sensors. The ADuCM350 is available in a 120-pin 8 mm x 8 mm CSP_BGA package with a rated operating temperature range of -40 ° C to +85 ° C.

To support minimal dynamic and dormant power management, the ADuCM350 offers a range of power modes and features, such as dynamic and software-controlled clock gating versus power gating. The AFE is connected to the ARM Cortex-M3 via an Advanced High Performance Bus (AHPB) slave interface on the Advanced Microcontroller Bus Architecture (AMBA) matrix, as well as direct memory access (DMA) and interrupt connections.

Device Specifications:

Core processor: ARM® Cortex®-M3

Kernel specification: 32-bit single-core

Speed: 16MHz

Connection capacity: I²C, SPI, UART/USART, USB

Peripheral: DMA, I²S, LCD, POR, WDT

Number of I/ OS: 66

Program storage Capacity: 384KB (384K x 8)

Program memory type: Flash

EEPROM capacity: 16K x 8

RAM size: 32K x 8

Voltage - power supply (Vcc/Vdd) : 2.5V ~ 3.6V

Data converter: A/D 12x16b; D/A 1x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 85°C

Mounting type: Surface mount type

Package/case: 120-LFBGA, CSPBGA

Supplier Package: 120-CSPBGA (8x8)

Basic product number: ADUCM350

Applications:

• Point-of-care diagnosis

• Wearable devices for monitoring vital signs

• Current, voltage, impedance measurement
