Recycled, supplied 16-core, 64-bit (NXP NXP) LX2162RE82029B processor with 16nm FinFET process technology 2GHz 1150-FBGA.

Device overview:

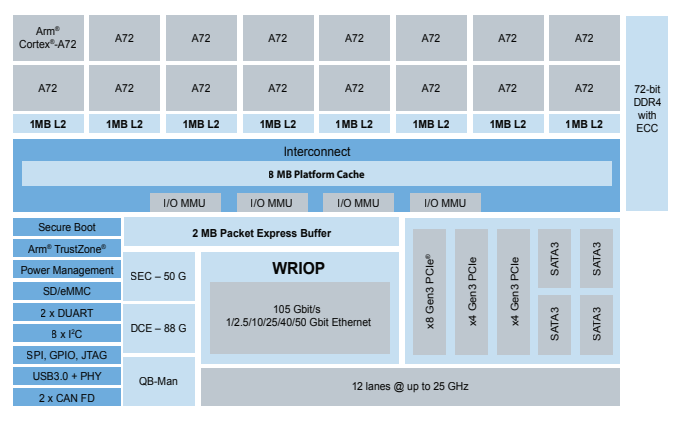

The QorlQ® Layerscape® LX2162A processor integrates the processing power of the popular LX2160A device into an almost quarter-size package. These processors feature not only 16nm FinFET process technology and low power consumption of up to 16 Arm® Cortex-A72 cores, but also data path acceleration (optimized for L2-3 packet processing), secure offloading and robust traffic management, as well as quality of service.

The LX2162A processor is suitable for small circuit boards such as network interface cards, COM Express Type 7 modules, OCP3 sandwich cards and custom subcards. The processor retains the LX2160A's 16 Cortex-A72 cores, 50Gbit/s security engine, and 88Gbit/s data compression engine. It has 12 SerDes channels with rates up to 25Gbit/s and can support four 25Gbit Ethernet connections and many other combinations such as x8 PCIe Gen3.

The LX2162A processor has a powerful Ethernet controller for packet offloading and edge computing, providing excellent computing performance.

Features:

Up to 16 64-bit Armv8 Cortex-A72 CPU cores running at up to 2.0GHz

16MB cache

12 SerDes channels operating at up to 25GHz

Up to 12 Ethernet ports

Supported Ethernet speeds include 1, 2.5, 10, 25, 40, and 50Gbit/s

105Gbit/s Layer 2 Ethernet switch

Up to 12 PCIe Gen3 channels with support for three x8 wide ports

50Gbit/s safety accelerator

88Gbit/s data compression/decompression engine

23x23mm, 1150 pin package

DDR4 72b (including ECC), up to 2900MT/s with a maximum capacity of 32GB

Applications:

5G packet processing

Custom subroutine

Enterprise access point

Micro CPE

Mini-ITX

Network function virtualization

OCP3 module

Intelligent network card

Memory controller

White-box switch

COM Express module

Ring view

Test and measurement

Building security

Industrial control

Motion control and robotics
