[ON supplier] 650V FAM65V05DF1 power driver module IGBT 3-phase 50A

[ON supplier] 650V FAM65V05DF1 power driver module IGBT 3-phase 50A

Source:本站Time:2023-06-16Views:

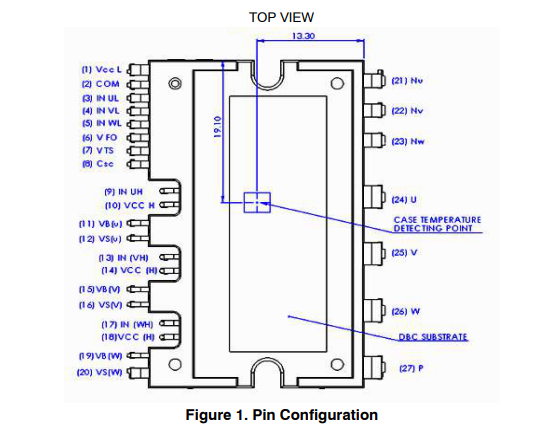

Device: FAM65V05DF1Description: Power driver module IGBT 3-phase 650 V 50 A 27-PowerDIP module (0.300", 7.62mm)Product Description:The FAM65V05DF1 Intelligent Power Module (IPM) is a highly integrated solid-state power switch that integrates an I…

Device: FAM65V05DF1

Description: Power driver module IGBT 3-phase 650 V 50 A 27-PowerDIP module (0.300", 7.62mm)



Product Description:

The FAM65V05DF1 Intelligent Power Module (IPM) is a highly integrated solid-state power switch that integrates an IGBT or MOSFEt-based gate drive circuit in a single module. IPM also includes protection of the power system from problems such as short circuits, undervoltage and extreme temperatures.


onsemi IPM's high integration, small package and excellent cooling performance help designers reduce system costs. These devices reduce assembly/component costs and shorten time to market with a simple assembly/component concept, and their power levels have been optimized to meet the optimal balance between switching characteristics and EMI performance. These IPMs also improve the reliability of short-circuit-rated IGBTs, which are driven by rugged gate driver ics in a rugged transfer molded package.


Features:

• AEC-Q101 compliant with PPAP feature options

• 1200V and 650V with field termination SCR (Silicon Controlled Rectifier) IGBT

• Wide power density: 3A to 75A

• True NTC, BSD and market-proven HVIC integration



Typical applications:

• Inverter

• Heating, Ventilation and Air Conditioning (HVAC)

• Solar power

• Wind power

• Uninterruptible power supply

• Large household appliances

• Consumer electronic devices

• Hybrid and electric vehicles


If you need, please contact us:

Email: sales@hkmjd.com

Company website: www.hkmjd.com
