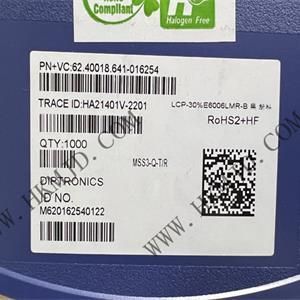

MSS3-Q-T/R is a surface-mount slide switch manufactured by Diptronics, featuring a single-pole double-throw (SPDT) circuit configuration. This switch employs an SMD package suitable for surface-mount technology and is widely utilised in electronic equipment requiring low power consumption and compact design.

MSS3-Q-T/R Specifications

Package Type: SMD

Circuit Configuration: Single Pole Double Throw (SPDT)

Number of Pins: 7-Pin

Operating Force: 150gf

Mechanical Life: 10,000 cycles

Operating Temperature: -20°C to +70°C

Rated Current: 25mA (DC)

Rated Voltage: 24V (DC)

Contact Resistance: 70mΩ

Insulation Resistance: 100MΩ

Dimensions: 6.7 x 2.6 x 1.4 mm

Mounting Type: Surface Mount

Lead-Free: Yes

MSS3-Q-T/R Application Fields

Consumer Electronics: e.g., smartphones, tablets, remote controls.

Industrial Equipment: e.g., operator panels, control consoles.

Medical Devices: e.g., portable medical equipment, diagnostic apparatus.

Communication Equipment: e.g., base station equipment, network terminals.
