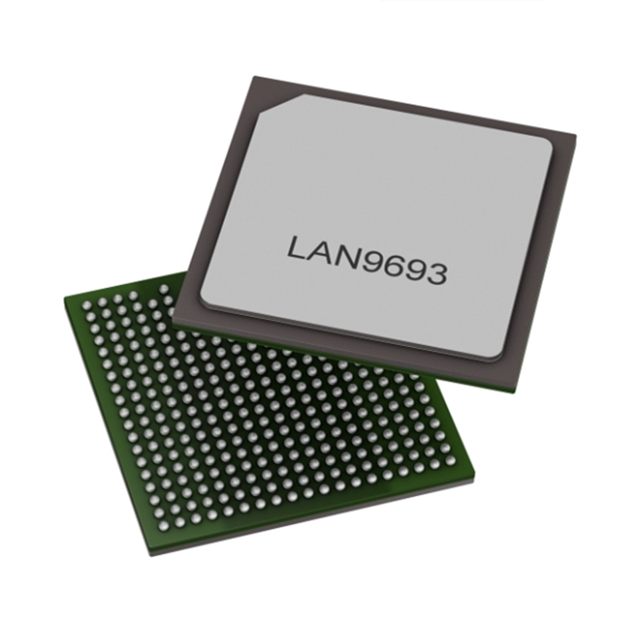

The LAN9693-V/3KWVAO Ethernet switching chip adopts a 1GHz single-core Arm® Cortex®-A53 CPU, featuring multi-gigabit capabilities and a bandwidth range of 102 Gbps. Advanced Time-Sensitive Networks (TSN) are designed to meet the requirements of precise timing and reliability for applications such as advanced driver assistance systems (ADAS).

In addition, the LAN9693-V/3KWVAO switching chip supports ASIL B functional safety and AEC-Q100 automotive certification standards, providing high reliability and safety for automotive applications. These devices are optimized for systems with small embedded memory space, featuring a secure and fast startup function. They execute code using integrated ECC SRAM without the need for expensive external DDR memory.

Main features

802.1Qch (CQF)

802.1Qbv (TAS)

802.1Qav (CBS)

802.1Qci (PSFP)

802.1AS-2020 (gPTP)

802.1CB (FRER)

802.1Qbu/802.3br (Frame Preemption)

10 SerDes ports ranging from 10 MBPS to 10 GBPS

Two RGMII/MII/RMII ports

Fully managed L2 switching and L3 forwarding capabilities

Quick and safe start

ASIL B functional safety ready

Complies with the AEC-Q100 standard

Target application

The LAN9693-V/3KWVAO switch is mainly applied in in-vehicle networks, supporting centralized control and flexible configuration of software-defined vehicles (SDN). It is suitable for scenarios with high requirements for real-time performance and reliability, such as ADAS and autonomous driving systems.
