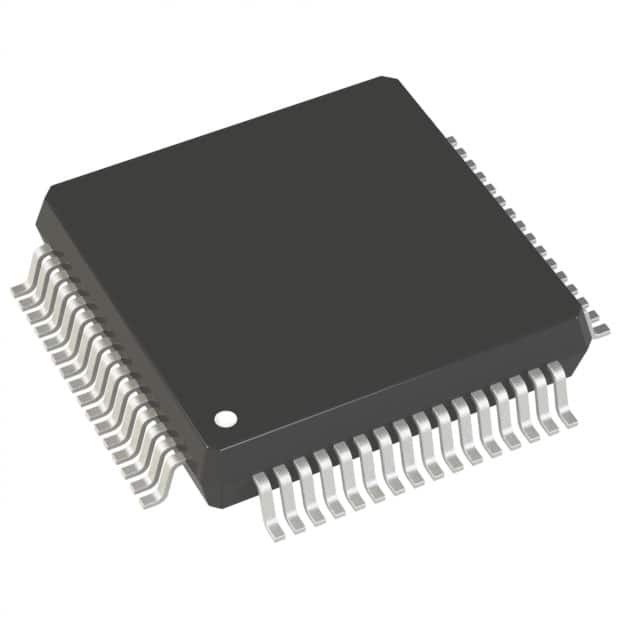

The R5F51111AGFK is a 32-bit microcontroller from (Renesas) featuring a ‌ low power ‌ and ‌ small capacity ‌ design for applications such as wearables, healthcare, and home appliances. With its three-phase motor control timer, the R5F51111AGFK is also suitable for motor control applications in household appliances and industrial equipment.

In addition, the core specification of the R5F51111AGFK microcontroller is 32 MHz and it supports 50 DMIPS performance. This device adopts the CISC Harvard architecture, supports communication interfaces such as I2C, SCI, SPI, and has built-in 12-bit A/D converters and 8-bit D/A converters. It is suitable for fields such as industrial control and consumer electronics.

Key parameters

Core processor: RX

Kernel specification: 32-bit

Speed: 32MHz

Connection capabilities: I2C, SCI, SPI, USB OTG

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O count: 46

Program storage capacity: 32KB (32K x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 10K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 3.6V

Data converter: A/D 14x12b; D/A 2x8b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Package: 64-LQFP (14x14)
