The R5F5671CDGLJ RX671 microcontroller features outstanding real-time performance and is equipped with the RXv3 core, with an operating frequency as high as 120MHz. The RX671 series achieves a non-contact user interface function through proximity sensor switches and voice recognition capabilities, thus realizing an HMI that suits the new normal and meets hygiene standards.

Technical specifications

Product: R5F5671CDGLJ

Core processor: RXv3

Kernel specification: 32-bit

Speed: 120MHz

Connection capabilities: CANbus, I2C, LINbus, QSPI, SCI, SPI, USB

Peripheral devices: Capacitive touch, DMA, LVD, POR, PWM, WDT

I/O count: 80

Program storage capacity: 1.5MB (1.5M x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 384K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 3.6V

Data converter: A/D 16x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

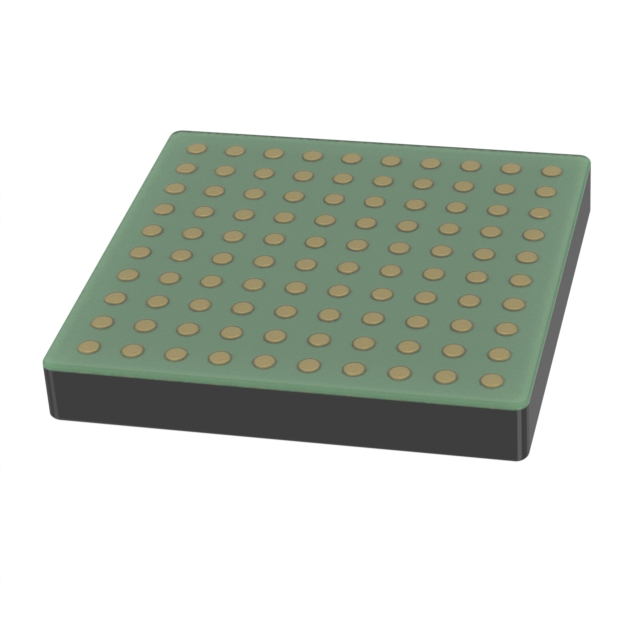

Package: 100-TFLGA (7x7)

Application scenarios

The R5F5671CDGLJ is suitable for scenarios such as home appliances and industrial equipment that require highly sensitive touch control and wireless communication, such as smart speakers and industrial control terminals.
