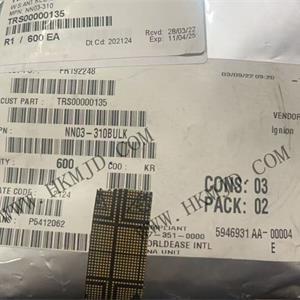

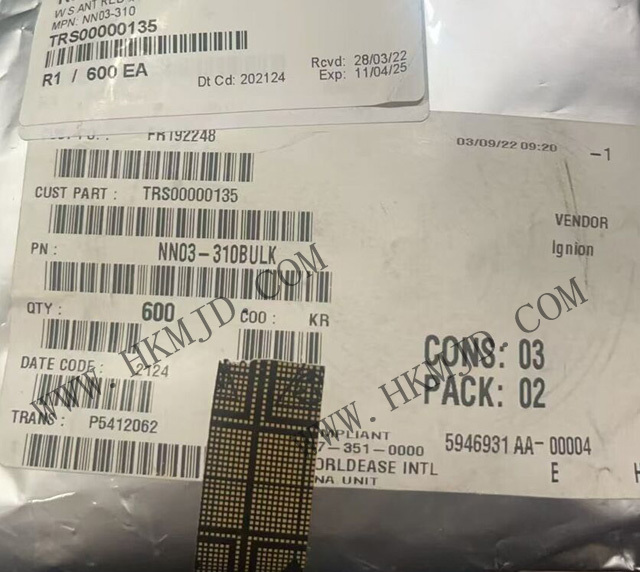

For picture reference, please see the specifications
< >

Commodity Model:NN03-310

Trade Name:RF Antenna

Brand:Ignion

Particular Year:21+

Package:SMD

Delivery Date:New and Original

Stock: 1200pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Ignion
Model
NN03-310
Package
SMD
Describe
RF antenna 400-8000MHz

Product Description

The Ignion NN03-310 TRIO mXTEND™ LTE, Wi-Fi® antenna integrates cellular connectivity, GNSS, and BLUETOOTH® into a single chip component. With a height of only 1 millimetre, this antenna can be integrated into almost all wireless platforms while providing global coverage. The NN03-310 TRIO mXTEND antenna is suitable for applications such as fleet management, asset tracking, reference designs, retail, security systems, smartphones, and industrial IoT.


NN03-310 Product Attributes:

Manufacturer: Ignion

Series: TRIO mXTEND™

Packaging: Tape (TR) or Cut Tape (CT)

Part Status: In Stock

RF Series/Standards: Bluetooth, Cellular, Navigation, Wi-Fi

Frequency Band: Ultra-Wideband

Frequency (Centre/Band): 450MHz, 634.5MHz, 707MHz, 800MHz, 829MHz, 892MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.85GHz, 1.94GHz, 2.2GHz, 2.45GHz, 3.6GHz, 4.15GHz, 5.502GHz, 6.525GHz, 8.3GHz

Frequency Range: 400MHz to 8GHz

Antenna Type: Chip

VSWR: 3

Gain: 0.4 dBi, 1.9 dBi, 0.9 dBi, 2.4 dBi, 3.8 dBi

Termination: Soldered

Mounting Type: Surface Mount

Height (Maximum): 0.039" (1.00 mm)

Applications: 2G, 3G, 4G, 5G, 802.11b/g/n/a/ac/ax, Beidou, Bluetooth, DCS, Galileo, Glonass, GNSS, GPS, GSM, LoRa, LTE, NB-IoT, PCS, Thread, UMTS, Wi-Fi, Wi-SUN, WLAN, Z-Wave, Zigbee


NN03-310 Application Areas:

Personal and Asset Tracking & Logistics

Automotive

Fleet Management

Industrial IoT

Medical

Reference Design

Remote Monitoring & Control

RFID

Retail

Security Systems

Smart Cities

Smart Homes

Smart Metering

Smartphones, Tablets & Laptops

Associated Products

Model

Brand

Package

Quantity

Describe

NN03-320

Ignion

SMD

2500

RF antenna 1500-10600MHz

BGSA11GN10E6327XTSA1

INFINEON

10-XFQFN

2000

Dual Single Pole Single Throw Antenna Tuning Switch

BGSA149M2N10E6327XTSA1

INFINEON

10-XFQFN

2000

Ultra low OFF capacitance antenna tuning SP4T

YEMN926J1A

Quectel

SMD

2000

GNSS Dome RF Antenna, SMA Male Screw Mount

BGSA149M2N10

INFINEON

TSNP-10-9

1000

Ultra low turn-off capacitor antenna tuning SP4T TSNP-10-9

FAQ

  • 1.Is the inventory and price seen on the platform accurate?

    A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.

  • 2.Are all our products genuine?

    A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.

  • 3.Can you provide the qualification certificate of the original factory or agent?

    A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.

  • 4.Can I make an inquiry through the company's website?

    A: You can inquire through the website, or by phone and email.

  • 5.When can I deliver the goods after placing an order? How long will it take to get there?

    A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.

  • 6.Can the company issue an invoice?

    A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.

Ignion

Ignion

Ignion is a leader in antenna technology, pioneering the use of Virtual Antenna solutions that have powered more than 60 million wireless devices globally. Virtual Antenna technology introduces non-resonant, frequency-independent components designed t…
