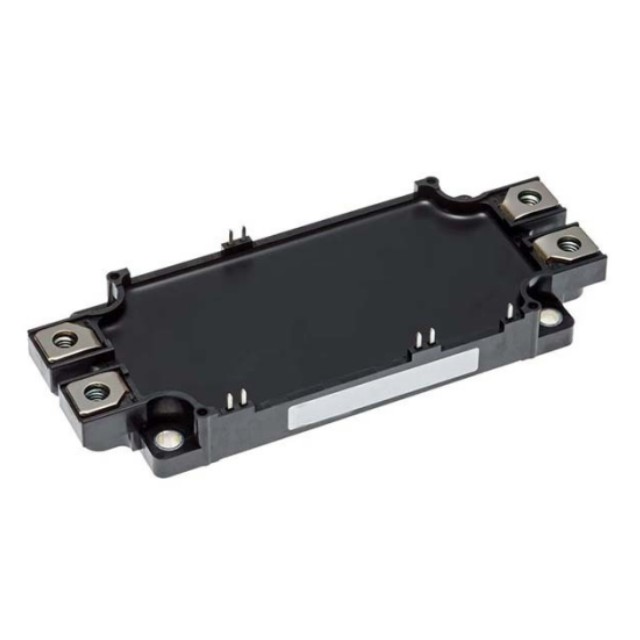

For picture reference, please see the specifications
< >

Commodity Model:CM300DX-34T

Trade Name:IGBT Module

Brand:MITSUBISHI

Particular Year:25+

Package:Module

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
MITSUBISHI
Model
CM300DX-34T
Package
Module
Describe
IGBT MODULE T-SERIES NX TYPE DUAL

Product Description

The CM300DX-34T is a high-performance IGBT module belonging to Mitsubishi Electric's T series. This module utilises advanced 7th-generation IGBT technology, featuring low power loss, high reliability, and compact design, making it suitable for a wide range of industrial applications.


CM300DX-34T Core Features

High-performance IGBT technology

1700V voltage rating (VCES) and 300A rated current (IC), suitable for high-power applications.

Low switching loss & low conduction voltage drop, enhancing system efficiency.

Dual-unit half-bridge design

2-PAC structure, suitable for inverters, servo drives, and other applications.

High-reliability packaging

NX-type packaging optimises internal inductance and thermal resistance, reducing high-frequency noise and enhancing heat dissipation.

4000Vrms insulation withstand voltage (Viso), compliant with industrial safety standards.

Industrial-grade applicability: Suitable for harsh industrial environments such as photovoltaic inverters, wind power generation, UPS power supplies, etc.


CM300DX-34T Technical Specifications

Package type: NX-type

Internal topology: 2-unit (2-PAC)

Rated voltage (VCES): 1700V

Rated current (IC): 300A

Insulation withstand voltage (Viso): 4000Vrms


Application areas: Industrial variable frequency, new energy power generation, UPS
