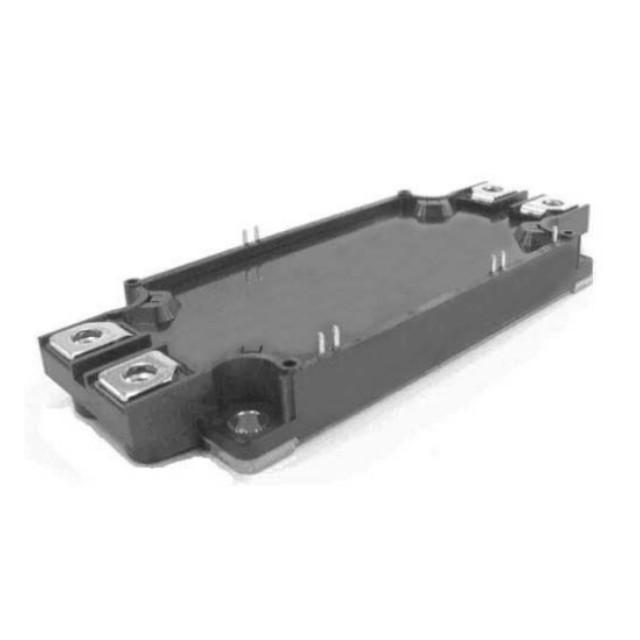

The CM300DX-34SA is an IGBT module in Mitsubishi Electric's NX series, featuring a dual-channel (2-unit) half-bridge topology with rated parameters of 1700V/300A. It is suitable for high-reliability applications such as industrial variable frequency drives, new energy power generation, and high-power motor drives.

This module employs the 6th-generation IGBT silicon wafer technology, featuring low switching losses and low on-state voltage drop characteristics, and integrates an NTC thermistor for temperature monitoring. Its NX-type packaging optimises internal inductance and thermal resistance, enhancing high-frequency switching performance and heat dissipation efficiency.

Technical Specifications

Brand: Mitsubishi Electric

Model: CM300DX-34SA

Package Type: NX-type (dual-channel)

Internal Topology: 2-unit (2-PAC)

Rated Voltage (VCES): 1700V

Rated Current (IC): 300A

IGBT Technology: 6th-generation CSTBT™

Diode Technology: 6th Generation LPT Silicon Wafer

NTC Thermistor: Integrated

Operating Temperature: -40°C to +150°C

Product Features

High Rated Power: Rated current 300A, rated voltage 3300V, capable of handling high-power output.

Original Imported Quality: Mitsubishi Electric original imported product, passed strict quality inspections, ensuring high performance and long service life.

Wide Range of Applications: Suitable for industrial automation equipment, new energy power generation, electric vehicle charging stations, and other high-power conversion scenarios.

Compact Design: Features a compact package, ideal for space-constrained applications.
