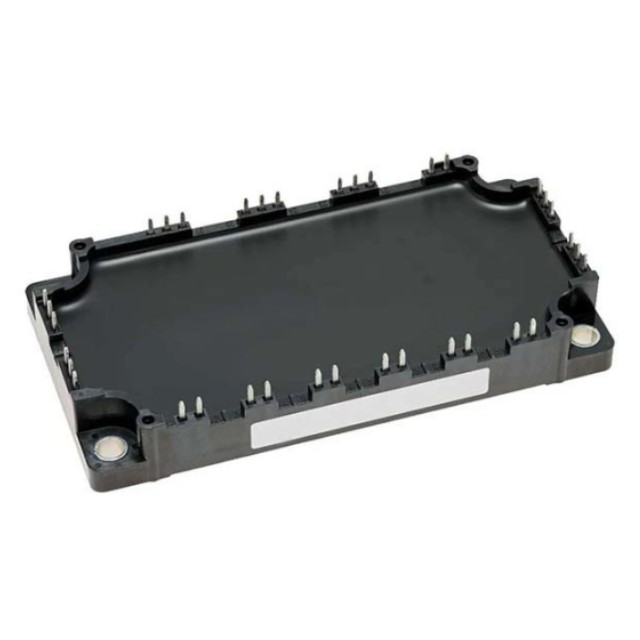

The CM200TX-24T is a T-series IGBT module launched by Mitsubishi Electric, featuring an NX-type package (welded terminals) and integrating six IGBT units (6-PAC) internally. It is suitable for applications such as industrial variable frequency drives, servo drives, and new energy power generation.

The CM200TX-24T incorporates the 7th-generation CSTBT™ (Carrier Storage Trench Gate Bipolar Transistor) and RFC diodes, significantly reducing switching losses and conduction losses while optimising EMI noise, making it suitable for high-efficiency, high-reliability power electronic systems.

Specifications

Model: CM200TX-24T

Package type: NX type (welded terminals)

Internal Topology: 6-unit (6-PAC)

Rated Voltage (VCES): 1200V

Rated Current (IC): 200A

Insulation Withstand Voltage (Viso): 2500Vrms

IGBT Technology: 7th-generation CSTBT™

Diode Technology: RFC diodes

Operating Temperature: -40°C to +125°C

CM200TX-24T Product Features

Low Power Loss: Utilises 7th Generation CSTBT™ IGBT and RFC diode technology to reduce power loss.

High Reliability: Utilises SLC (Solid Cover) packaging technology to extend thermal cycle life.

Compact Design: Compatible with industry-standard packaging, improved internal structure, and reduced internal inductance.

Multiple installation options: Offers both solder terminals and crimp terminals for increased flexibility.

CM200TX-24T Application Areas

AC motor control: Used in general-purpose inverters, elevators, and other equipment.

Servo drives: Suitable for high-precision motion control.

Power equipment: Such as uninterruptible power supplies (UPS), solar, and wind power systems.

Industrial automation: Used for power management and control in various industrial equipment.
