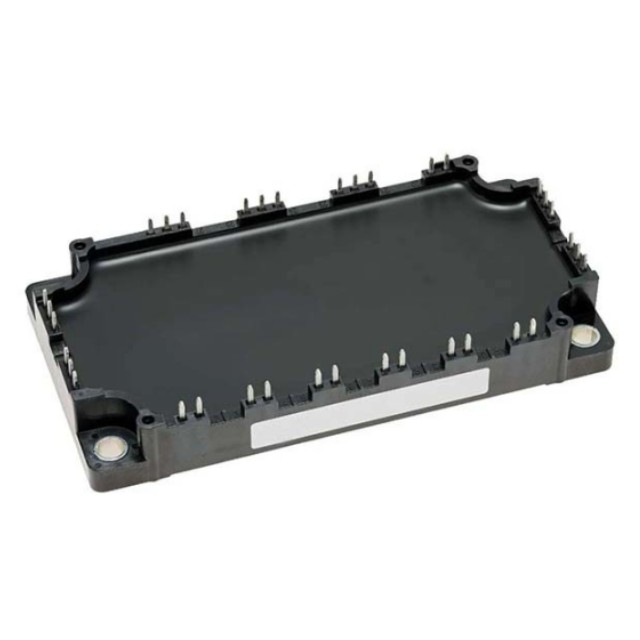

The CM200TX-13T is a high-performance IGBT module belonging to the T Series 6-PAC NX type. This module is equipped with Mitsubishi Electric's 7th generation IGBT technology and adopts the advanced CSTBT™ (Carrier Storage Effect Bipolar Transistor) structure, featuring low power loss, high reliability, and compact size.

CM200TX-13T Technical Specifications

Series: T Series 6-PAC NX Type

IGBT Technology: 7th Generation IGBT, CSTBT™ Structure

Package Type: NX Type

Operating Voltage: 1200V

Rated Current: 500A

Saturation Voltage Drop (Vce,sat): Low saturation voltage drop

Operating Temperature Range: -40°C to +125°C

Thermal Cycle Life: Extended thermal cycle life

Mounting Method: Crimp terminals, PC-TIM (phase change thermal interface material)

CM200TX-13T Product Features

Low Power Loss: Utilises 7th-generation IGBTs and RFC-structured diodes to reduce power loss.

Compact Design: Approximately 36% smaller in volume compared to traditional S-series models, facilitating the miniaturisation of industrial equipment.

High Reliability: Reduces welded sections through a new structure, extending thermal cycle life.

Simplified Assembly: Utilises crimp terminals and PC-TIM to simplify industrial equipment assembly processes.

Built-in Functions: Newly integrated three-phase converter, inverter, and braking circuit (CIB) simplify industrial equipment design.

CM200TX-13T Application Scenarios

Motion Control: Suitable for motion control systems in various industrial equipment.

Renewable Energy: Used in renewable energy systems such as solar and wind power.

Power Supply and Uninterruptible Power Supply (UPS): Provides efficient power management and protection.
