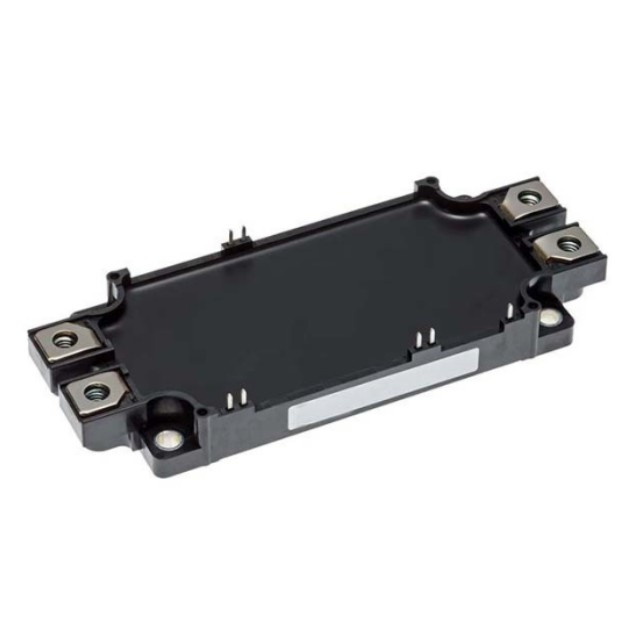

Commodity Model:CM200DX-24S

Trade Name:IGBT Module

Brand:MITSUBISHI

Particular Year:25+

Package:Module

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
MITSUBISHI
Model
CM200DX-24S
Package
Module
Describe
IGBT MODULE S-SERIES NX TYPE DUAL

Product Description

The CM200DX-24S is an IGBT power module in the NX series launched by Mitsubishi Electric. It adopts a half-bridge topology and is suitable for applications such as industrial variable frequency drives, servo drives, and new energy inverters. This module is based on sixth-generation IGBT silicon technology, optimising the balance between switching losses and conduction losses. It integrates an NTC thermistor for temperature monitoring, complies with RoHS lead-free standards, and has obtained UL1557 certification.


CM200DX-24S Features

High power density design

1200V/200A high voltage withstand capability and high current capacity, suitable for applications such as industrial motor drives and photovoltaic inverters.

Half-bridge topology with two integrated IGBT units, reducing external circuit complexity.

Low loss and efficient switching

Vce(sat) = 2.15V @15V, 200A, optimising conduction loss.

Switching frequency ≤20kHz, suitable for high-frequency PWM control applications.

High-reliability packaging

Low-inductance packaging (LV100) reduces stray inductance and suppresses switching overshoot voltage.

Insulation withstand voltage of 2500Vrms (Viso) meets industrial-grade safety standards.

Temperature monitoring and protection

Built-in NTC thermistor for real-time monitoring of module temperature, supporting over-temperature protection functionality.

Operating temperature range of -40°C to +150°C, suitable for harsh industrial environments.


Technical Specifications

Model: CM200DX-24S

Topology: Half-Bridge

Rated Voltage (VCES): 1200V

Rated Current (IC): 200A

Insulation withstand voltage (Viso):    2500Vrms

Vce(sat) @15V,200A:2.15 V

Input capacitance (Cies): 20nF @10V

Maximum power dissipation: 1500    W

Operating temperature: -40°C to +150°C

Package type: Module (base mounting)


Typical Applications

Industrial variable frequency drives (pump, fan, compressor drives)

Servo control systems (high dynamic response)

Photovoltaic inverters (solar power generation systems)

Welding equipment (medium-high frequency switching power supplies)

Associated Products

Model

Brand

Package

Quantity

Describe

CM150TX-34T

MITSUBISHI

Module

2000

IGBT MODULE T-SERIES 6-PAC NX TYPE

CM150TX-24S

MITSUBISHI

Module

2000

IGBT MODULE S-SERIES NX TYPE 6-PAC

CM150MXUD-24T

MITSUBISHI

Module

2000

IGBT MODULE T-SERIES NX TYPE CIB D PACKAGE

CM150RXL-34SA

MITSUBISHI

Module

2000

IGBT MODULE SA-SERIES NXL TYPE 7-PAC

CM150MXUD-13T1

MITSUBISHI

Module

2000

IGBT MODULE T1-SERIES NX TYPE CIB D PACKAGE

CM1200DW-40T

MITSUBISHI

Module

5000

IGBT Module T-SERIES INDUSTRIAL LV100

P180A2006

TE

MODULE

616

High Performance IGBT Power Modules

V23990-P180-A20-PM

TE

MODULE

616

High Performance IGBT Power Modules

DF900R12IP4DPB60

INFINEON

Module

2000

IGBT Modules Trench Field Cut-off Single Chopper 1200 V 900 A 5.1 kW Chassis Mount Modules

MSCGLQ100X065CTYZBNMG

Microchip

Module

1000

IGBT module Three-phase inverter with brake 650 V 150 A 400 W Chassis mounting
