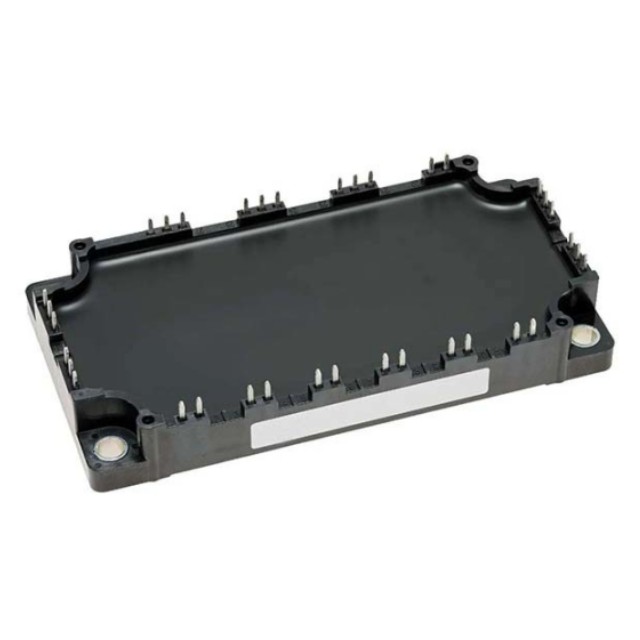

Commodity Model:CM150TX-34T

Trade Name:IGBT Module

Brand:MITSUBISHI

Particular Year:25+

Package:Module

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
MITSUBISHI
Model
CM150TX-34T
Package
Module
Describe
IGBT MODULE T-SERIES 6-PAC NX TYPE

Product Description

The CM150TX-34T is a high-performance IGBT power module launched by Mitsubishi Electric, belonging to the T series. It adopts a 6-PACK (three-phase full bridge) topology structure and is suitable for high-power applications such as industrial variable frequency drives, new energy inverters, and servo drives. This module is based on advanced IGBT chip technology, offering 1700V voltage rating and 150A current carrying capacity, and features a low-inductance packaging design to optimise switching performance, making it suitable for high-frequency PWM control applications.


CM150TX-34T Features

High power density design

1700V/150A high voltage withstand and high current capability, suitable for applications such as industrial motor drives and photovoltaic inverters.

6-PACK (three-phase full-bridge) integrated topology reduces external circuit complexity and enhances system reliability.

Low loss and efficient switching

Utilises optimised IGBT silicon technology to reduce conduction loss (Vce(sat)) and switching loss, improving overall energy efficiency.

Supports high-frequency PWM control (≤20kHz), suitable for servo drives, inverters, and other high-dynamic response systems.

High reliability packaging

Low-inductance packaging (LV100) reduces stray inductance and suppresses switching overshoot voltage.

Insulation withstand voltage of 4000 Vrms (Viso) meets industrial-grade safety standards.

Temperature monitoring and protection

Built-in NTC thermistor for real-time monitoring of module temperature, supporting over-temperature protection functionality.

Operating temperature range of -40°C to +150°C, suitable for harsh industrial environments.


Technical Specifications

Model: CM150TX-34T

Topology: 6-PACK (three-phase full bridge)

Rated Voltage (VCES): 1700 V

Rated Current (IC): 150 A

Insulation Withstand Voltage (Viso): 4000 Vrms

Switching Frequency: ≤20 kHz

Package Type: LV100 (Low Inductance Design)

Operating Temperature: -40°C to +150°C

Compliance Standards: RoHS, UL1557

Associated Products

Model

Brand

Package

Quantity

Describe

CM200DX-24S

MITSUBISHI

Module

2000

IGBT MODULE S-SERIES NX TYPE DUAL

CM150TX-24S

MITSUBISHI

Module

2000

IGBT MODULE S-SERIES NX TYPE 6-PAC

CM150MXUD-24T

MITSUBISHI

Module

2000

IGBT MODULE T-SERIES NX TYPE CIB D PACKAGE

CM150RXL-34SA

MITSUBISHI

Module

2000

IGBT MODULE SA-SERIES NXL TYPE 7-PAC

CM150MXUD-13T1

MITSUBISHI

Module

2000

IGBT MODULE T1-SERIES NX TYPE CIB D PACKAGE

CM1200DW-40T

MITSUBISHI

Module

5000

IGBT Module T-SERIES INDUSTRIAL LV100

P180A2006

TE

MODULE

616

High Performance IGBT Power Modules

V23990-P180-A20-PM

TE

MODULE

616

High Performance IGBT Power Modules

DF900R12IP4DPB60

INFINEON

Module

2000

IGBT Modules Trench Field Cut-off Single Chopper 1200 V 900 A 5.1 kW Chassis Mount Modules

MSCGLQ100X065CTYZBNMG

Microchip

Module

1000

IGBT module Three-phase inverter with brake 650 V 150 A 400 W Chassis mounting
