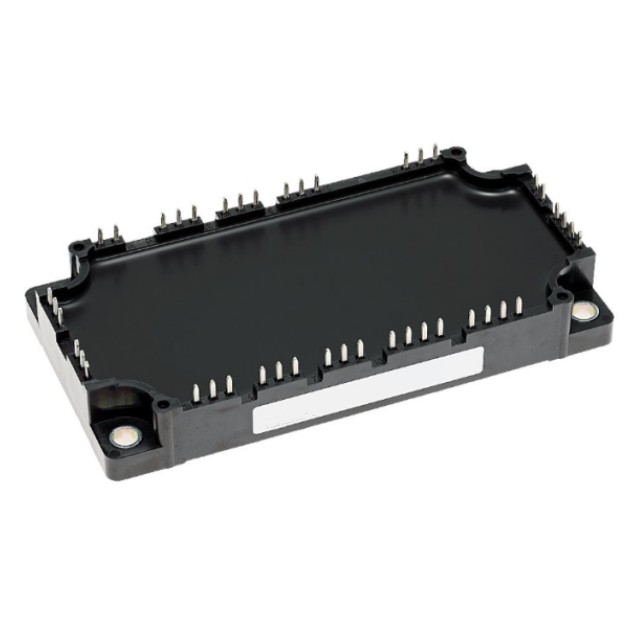

Commodity Model:CM150MXUD-24T

Trade Name:IGBT Module

Brand:MITSUBISHI

Particular Year:25+

Package:Module

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
MITSUBISHI
Model
CM150MXUD-24T
Package
Module
Describe
IGBT MODULE T-SERIES NX TYPE CIB D PACKAGE

Product Description

The CM150MXUD-24T is a high-performance IGBT module developed by Mitsubishi Electric, belonging to the T series. This module is specifically designed for high-power switching applications, incorporating advanced packaging technology and an optimised internal structure to ensure excellent heat dissipation performance and long-term stability. It is suitable for applications such as industrial drives and uninterruptible power supplies (UPS), enabling efficient current control and rapid switching to enhance the overall efficiency and reliability of the system.


CM150MXUD-24T  Features and Specifications

High-power handling capability: Maximum collector current up to 150A, voltage rating up to 1200V.

Optimised switching performance: Low switching losses and fast switching speed.

Integrated protection functions: Includes over-temperature, over-current, and short-circuit protection.

Temperature compensation: Built-in NTC thermistor for temperature monitoring and protection.

Package type: Flat type, copper substrate (nickel-plated), compliant with RoHS directives.

Optional configuration: Pre-coated with phase-change thermal interface material (PC-TIM).


CM150MXUD-24T Specifications

Maximum collector-emitter voltage (VCES): 1200 V

Maximum continuous current (IC): 150 A

Maximum pulse current (ICM): 300 A

Maximum operating temperature (Tvjmax): 175 °C

Package type: Flat type

Mounting method: Bolt mounting

Operating Temperature Range: -40°C to 175°C


Applications

The CM150MXUD-24T is widely used in the following fields:

AC motor control

Motion/servo control

Power supply

Industrial automation

Uninterruptible power supply (UPS)

Associated Products

Model

Brand

Package

Quantity

Describe

CM200DX-24S

MITSUBISHI

Module

2000

IGBT MODULE S-SERIES NX TYPE DUAL

CM150TX-34T

MITSUBISHI

Module

2000

IGBT MODULE T-SERIES 6-PAC NX TYPE

CM150TX-24S

MITSUBISHI

Module

2000

IGBT MODULE S-SERIES NX TYPE 6-PAC

CM150RXL-34SA

MITSUBISHI

Module

2000

IGBT MODULE SA-SERIES NXL TYPE 7-PAC

CM150MXUD-13T1

MITSUBISHI

Module

2000

IGBT MODULE T1-SERIES NX TYPE CIB D PACKAGE

CM1200DW-40T

MITSUBISHI

Module

5000

IGBT Module T-SERIES INDUSTRIAL LV100

P180A2006

TE

MODULE

616

High Performance IGBT Power Modules

V23990-P180-A20-PM

TE

MODULE

616

High Performance IGBT Power Modules

DF900R12IP4DPB60

INFINEON

Module

2000

IGBT Modules Trench Field Cut-off Single Chopper 1200 V 900 A 5.1 kW Chassis Mount Modules

MSCGLQ100X065CTYZBNMG

Microchip

Module

1000

IGBT module Three-phase inverter with brake 650 V 150 A 400 W Chassis mounting
