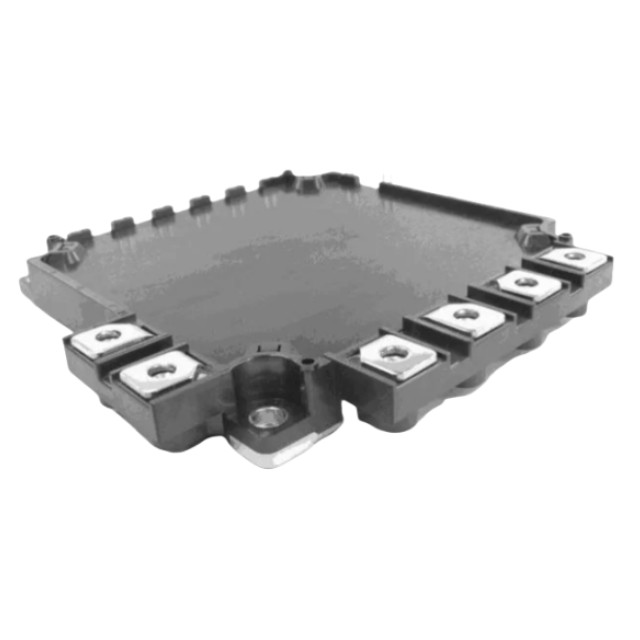

The CM150RXL-34SA is a high-performance IGBT power module developed by Mitsubishi Electric, designed for high-voltage, high-current power electronics applications such as industrial variable frequency drives, motor drives, and new energy inverters. The module features optimised packaging and semiconductor technology, offering low loss and high reliability, making it suitable for harsh industrial environments.

CM150RXL-34SA Core Features

High-voltage and high-current capability

Rated voltage of 1700V and rated current of 150A, suitable for high-power power conversion applications.

Suitable for industrial variable frequency drives, photovoltaic inverters, motor control, and other applications.

Low conduction and switching losses

Utilises optimised IGBT chip technology to reduce Vce(sat) conduction losses and switching losses, thereby improving system efficiency.

Features fast switching speeds, making it suitable for high-frequency PWM control applications.

High reliability design

High-temperature resistance enables stable operation in harsh industrial environments.

Low temperature drift characteristics ensure consistent performance across varying temperatures.

Modular packaging optimisation

Standard industrial packaging facilitates heat dissipation design and system integration.

Built-in freewheeling diode (FWD) reduces the need for external circuits.

CM150RXL-34SA Typical Applications

Industrial inverters (servo drives, pumps, fan control)

New energy inverters (photovoltaic, wind power)

Motor control systems (electric vehicles, rail transit)

UPS uninterruptible power supply
