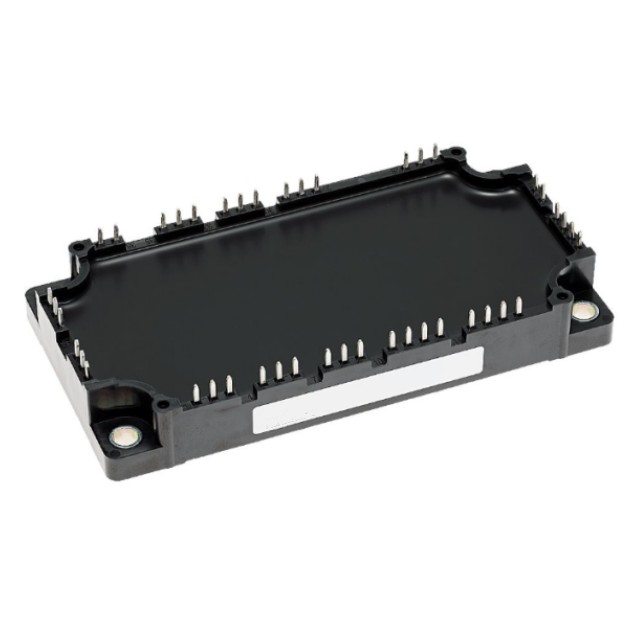

The CM150MXUD-13T1 is Mitsubishi Electric's seventh-generation NX series IGBT power module, featuring CSTBT™ technology, and is suitable for high-power applications such as industrial variable frequency drives, servo drives, and new energy inverters. The module adopts a CIB integrated design, incorporating a three-phase converter, inverter, and braking circuit, which significantly simplifies system design and optimises power loss and thermal management performance.

CM150MXUD-13T1 Core Features

CIB Integrated Design

Includes built-in three-phase rectifier, inverter, and braking units, reducing the need for external circuits.

Compared to traditional modules, the package size is reduced by 36%, making it suitable for compact designs.

7th Generation CSTBT™ Technology

Adopts a cathode relaxation field (RFC) structure to reduce conduction losses (Vce(sat)) and switching losses.

Optimised carrier storage layer enhances high-frequency switching performance.

Weld-Free Connection Structure

Adopts press-fit pins and PC-TIM (phase-change thermal interface material) to simplify assembly processes and improve thermal cycle lifespan.

Low-inductance package optimisation

Utilises the LV100 package with optimised internal layout to reduce stray inductance, supporting high-frequency switching (>30kHz).

High reliability

Suitable for industrial-grade operating environments (-40°C to +150°C).

CM150MXUD-13T1 Typical Applications

Industrial inverters (general-purpose inverters, servo drives)

Renewable energy inverters (photovoltaic, wind power)

Medical equipment (MRI, CT power supplies)

Induction heating equipment
