The R7F7010124AFP is a premium automotive microcontroller from Renesas for body applications, focusing on low power consumption and low cost for body applications. R7F7010124AFP has the following key parameters:

Core processor: RH850G3K

Kernel specification: 32-bit

Speed: 80MHz

Connection capabilities: CANbus, CSI, I2C, LINbus, SPI, UART/USART

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O number: 49

Program storage capacity: 384KB (384K x 8)

Program memory type: Flash memory

EEPROM capacity: 32K x 8

RAM size: 48K x 8

Voltage - Power supply (Vcc/Vdd) : 3V to 5.5V

Data converter: A/D 11x12b, 10x10b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

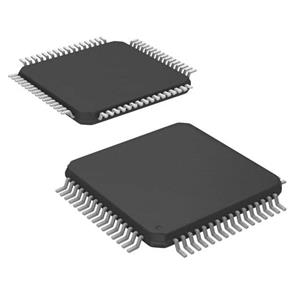

Packaging/Housing: 64-LQFP

In addition, the R7F7010124AFP supports 80MHz single-core or dual-core configuration, adopts 40nm process to reduce power consumption, supports branch prediction mechanism and high-speed flash memory access, and is suitable for high-frequency interrupt handling and complex computing.

Application scenarios

The R7F7010124AFP is mainly applied in scenarios such as body control modules, instrument panel systems, and infotainment systems that require high integration and low power consumption. ‌
