Service Telephone:86-755-83294757
Trade Name:Board To Board Connectors
Brand:Samtec
Particular Year:25+
Package:200POS
Delivery Date:New and Original
Stock: 3000pcs

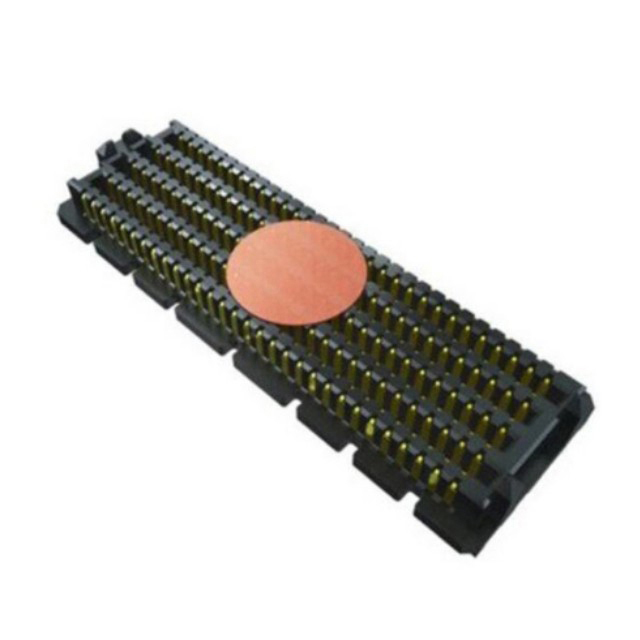

SEAM-20-03.0-S-10-2-A-K-TR: Samtec SEARAY™ SEAM Series High Speed Board-to-Board Connectors
Below are product details for connector SEAM-20-03.0-S-10-2-A-K-TR:
Basic Information:
Model No.: SEAM-20-03.0-S-10-2-A-K-TR
Series: SEARAY™ SEAM
Package: 200POS
Type: High Speed Board-to-Board Connector
Product Details: .050’ Pitch, SEARAY™ High Speed High Density Terminals Open Terminal Array Pins
Overview:
SEARAY™ - 56 Gbps PAM4 High Density Open Terminal Arrays offer maximum flexibility and up to 560 I/Os in stack heights from 7 mm to 40 mm, allowing differential pair signals, single-ended signals, and power to be transmitted simultaneously over the same interconnect.The SEAMs feature SureCoat™ palladium-nickel and flash gold plating, and are Extended Life Product™ certified to withstand 5.000 cycles and 150º operating temperature.
SEAM-20-03.0-S-10-2-A-K-TR Product Attributes:
Number of Positions: 200 Position
Pitch: 1.27 mm (0.05 in)
Number of Rows: 10 Row
End Connection Type: Welded
Mounting angle: Straight
Stacking Height: 7 mm
Current rating: 2.7 A
Voltage rating: 240 VAC
Minimum Operating Temperature: - 55 °C
Maximum operating temperature: + 125 °C
Model
Brand
Package
Quantity
Describe
Samtec
200POS
2000
200-position connector, high-density array, female, surface mount, gold-plated
Samtec
320POS
3500
320POS, .050’ SEARAY™ High-Speed High-Density Terminal Open Terminal Array Receptacle
Samtec
200POS
2000
200-position connector, high-density array, female, surface mount, gold-plated
Samtec
180POS
2000
SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal
Samtec
400POS
3500
400POS, SEARAY™ SEAF High-Speed Right-Angle Open Terminal Array Receptacle
Samtec
150POS
2000
SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal
Samtec
320POS
3500
0.050’ Pitch, 320POS, SEARAY™ High Speed Right Angle Open Terminal Array Receptacle
Samtec
400POS
1400
400-Position Connector, High-Density Array, Female, Surface Mount, Right Angle, Gold-Plated
Samtec
100POS
2000
SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal
Samtec
120POS
2000
SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
