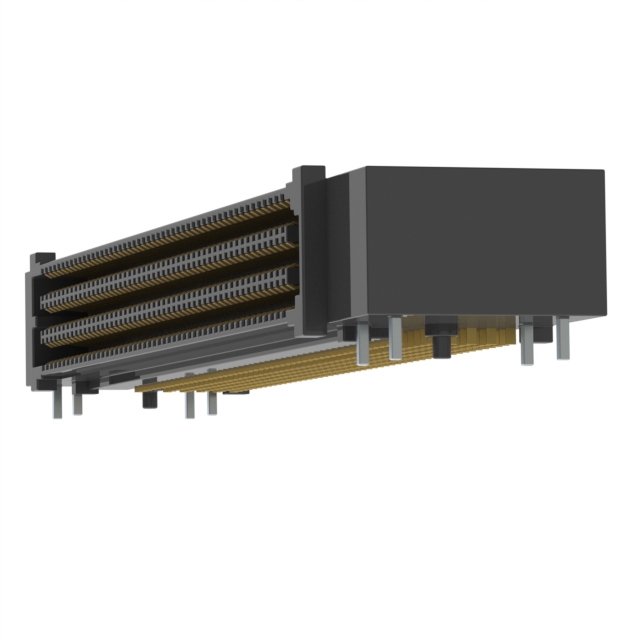

SEAF-50-01-L-06-1-RA-LP-TR is a high-speed right-angle open pin array connector in the SEARAY™ series launched by Samtec. Its main features are as follows:

High-density design: With a pitch of 0.050 inches (1.27 millimetres), it can accommodate up to 500 terminals, maximising flexibility for single-ended or differential pair configurations, as well as power, signal, or ground configurations.

High-speed signal transmission: Utilises the Edge Rate® terminal system to support data transfer rates of up to 56 Gbps, ensuring signal integrity and reliability, making it ideal for high-speed communication and data processing applications.

Multiple configuration options: Offers various stacking height options to accommodate diverse design requirements, and supports single-ended or differential pair configurations, as well as different power, signal, or grounding needs.

Low insertion and extraction force: Facilitates connection and disconnection while ensuring connection stability, simplifying device assembly and maintenance processes.

High reliability: Manufactured with high-quality materials through rigorous quality control and testing, it offers excellent electrical performance and mechanical stability, capable of reliable long-term operation in harsh environments.

Good compatibility: Compatible with various high-speed communication and data processing devices, it can be widely applied in high-speed communication, data processing, military, and aerospace fields.

Product parameters

Manufacturer: Samtec Inc.

Model: SEAF-50-01-L-06-1-RA-LP-TR

Series: SEARAY™ SEAF

Connector Type: High-density array, female

Pin Count: 300

Pitch: 0.050’ (1.27mm)

Row Count: 6

Mounting Method: Surface mount, right angle

Contact Surface Finish: Gold Plated (10.0µin / 0.25µm)

Rated Current: 1.9A

Rated Voltage: 240VAC / 339VDC

Board Height: 0.411’ (10.45mm)

Packaging: Tape and Reel (TR)
