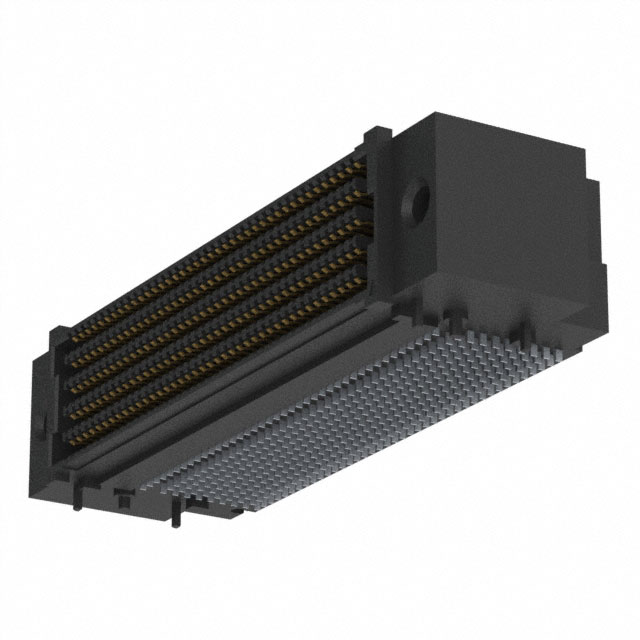

SEARAY™ SEAF-40-01-S-10-1-RA-GP-TR is a right-angle open terminal array connector with a 0.050’ (1.27mm) pitch. SEARAY™ can provide up to 500 terminals, maximising flexibility in single-ended or differential pair configurations, as well as power, signal, or ground design and routing. SEARAY™ uses the Edge rate® terminal system, which is specifically designed for applications requiring high mating cycles and 56 Gbps PAM4 performance.

Product Attributes: SEAF-40-01-S-10-1-RA-GP-TR

Product Type: Board-to-Board and Interlayer Connectors

Product: Headers

Position Count: 400 Positions

Pitch: 1.27 mm (0.05 in)

Row Count: 10 Rows

Termination Type: Solder

Mounting Angle: Right Angle

Stack Height: 7 mm

Current Rating: 2.7 A

Voltage Rating:    240 VAC

Minimum Operating Temperature:    -55°C

Maximum Operating Temperature:    +125°C

Contact Plating:    Gold

Contact Material:    Copper Alloy

Housing Material:    Liquid Crystal Polymer (LCP)

Series:    SEAF-RA

Application:    Power, Signal

Flammability Rating: UL 94 V-0

Mounting Style: SMD/SMT
