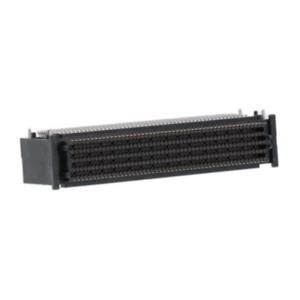

SEAF-40-01-S-06-1-RA-GP-TR is a high-density board-to-board connector belonging to the SEARAY™ SEAF series, designed for high-speed signal transmission and high-density PCB interconnect applications. This connector features a right-angle surface mount (SMD) design with 240 pins, supporting 56Gbps NRZ signal transmission, and is widely used in 5G communications, data centres, industrial automation, and medical equipment applications.

Features of SEAF-40-01-S-06-1-RA-GP-TR

High-density layout

240 pins arranged in 6 rows with a pitch of 0.050’ (1.27mm), suitable for compact PCB designs.

Right-angle mounting optimises space utilisation.

High-speed signal support

Utilises Edge Rate® terminal technology to support 56Gbps NRZ data transmission, suitable for 5G, high-speed computing, and server applications.

High reliability and durability

Gold-plated contacts (thickness 30.0µin / 0.76µm) enhance conductivity and oxidation resistance.

Board rails and mating flanges ensure stable insertion and removal.

Installation and Compatibility

Surface Mount (SMD) design supports automated PCB assembly.

Board height of 0.411’ (10.45mm) accommodates various stacking requirements.

Wide Temperature Range

Operating temperature: -55°C to +125°C, suitable for harsh industrial environments.

Product attributes of SEAF-40-01-S-06-1-RA-GP-TR

Series: SEARAY™ SEAF

Connector type: High-density array, female

Pin count: 240

Pitch: 0.050’ (1.27mm)

Number of rows: 6

Mounting type: Surface mount, right angle

Features: Board rail, mating flange

Contact surface finish: Gold plating

Contact surface finish thickness: 30.0µin (0.76µm)

Board height: 0.411’ (10.45mm)
